NORTH AMERICAN-MADE REPLACEABLE TIPS

Excessive wear on the side or above the nose creates a rounded-off tip that can’t adequately fracture the soil, leading to lost bushels in your bin with a risk of higher repair costs if tips break and cause holder damage. Follow these simple steps to do a quick check…

Replaceable tips with tungsten carbide inserts are available for use with single shoot, paired row, side band and fertilizer openers.

We partner with Leth Iron in Lethbridge, AB to cast our replaceable tips with high chrome material, providing North American-made products with superior wear resistance.

Quickly and easily install new tips with our stainless steel bolt and nut combos: 600-BNC-5000 and 200-BNC-3100. Proven to work when roll pins won’t.

SINGLE SHOOT REPLACEABLE TIPS
200-TIP-0511
200-TIP-0511
200-TIP-0511

200-TIP-0511

CARBIDE TIP

1/2″ (13mm) with carbide insert on the nose. Not recommended in highly abrasive conditions.

200-TIP-0800
200-TIP-0800
200-TIP-0800

200-TIP-0800

CHROME TIP

3/4” (19mm) tip. Not recommended in highly abrasive conditions.

200-TIP-0801
200-TIP-0801
200-TIP-0801

200-TIP-0801

CARBIDE TIP

3/4” (19mm) tip with carbide insert on the nose.

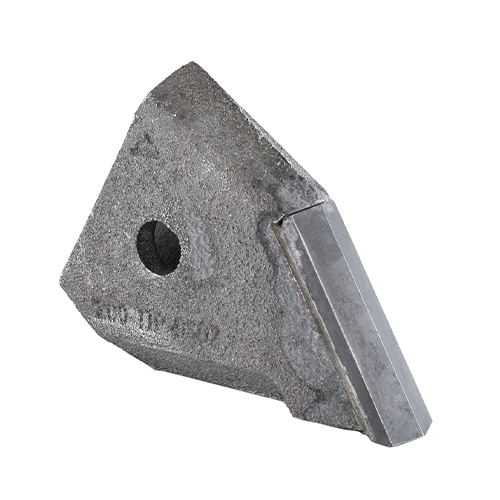

200-TIP-0802
200-TIP-0802
200-TIP-0802

200-TIP-0802

CARBIDE TIP

3/4” (19mm) tip with extra long carbide on the nose for highly abrasive conditions.

200-TIP-0803
200-TIP-0803
200-TIP-0803
200-TIP-0803

CARBIDE TIP

3/4” (19mm) tip with extra long carbide on the nose and sides for highly abrasive conditions. The same as 200-TIP-0802 but with the addition of the side carbide inserts.

200-TIP-0811
200-TIP-0811
200-TIP-0811
200-TIP-0811

VERTICAL CARBIDE TIP

3/4” (19mm) vertical tip with extra long carbide on the nose for highly abrasive conditions.

200-TIP-1011
200-TIP-1011
200-TIP-1011
200-TIP-1011

VERTICAL CARBIDE TIP

1” (25mm) vertical tip with double carbide insert. Recommended for rocky and highly abrasive conditions.

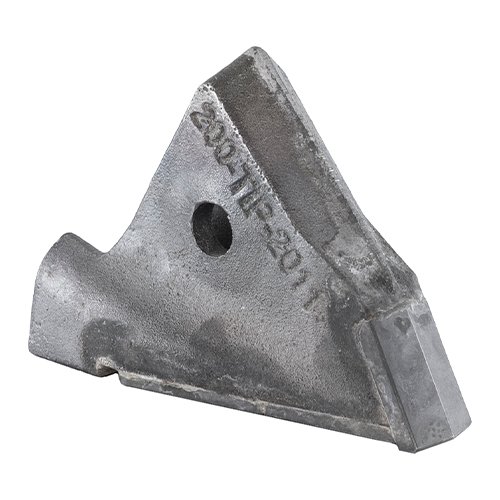

200-TIP-2011
200-TIP-2011
200-TIP-2011
200-TIP-2011-underside-BTT-Bourgault-Tillage-Tools-Replaceable-Tip
200-TIP-2011

CARBIDE SPREAD TIP

2” (51mm) tip with carbide insert on the nose to fracture the ground. Carbide inserts on the underside of the wings to maintain a sharp cutting edge.

200-TIP-3000
200-TIP-3000
200-TIP-3000
200-TIP-3000

CHROME SPREAD TIP

3” (76mm) tip. Not recommended in highly abrasive conditions.

200-TIP-3001
200-TIP-3001
200-TIP-3001
200-TIP-3001-underside-BTT-Bourgault-Tillage-Tools-Replaceable-Tip
200-TIP-3001

CARBIDE SPREAD TIP

3” (76mm) tip with carbide insert on the nose and hard facing on the underside of the wings.

200-TIP-3011
200-TIP-3011
200-TIP-3011
200-TIP-3011
200-TIP-3011

CARBIDE SPREAD TIP

3” (76mm) tip with carbide insert on the nose to fracture the ground. Carbide inserts on the underside of the wings to maintain a sharp cutting edge.

200-TIP-4011
200-TIP-4011
200-TIP-4011
200-TIP-4011
200-TIP-4011

CARBIDE SPREAD TIP

4” (101mm) tip with carbide insert on the nose to fracture the ground. Carbide inserts on the underside of the wings to maintain a sharp cutting edge.

610-TIP-0802
610-TIP-0802
610-TIP-0802
610-TIP-0802

CARBIDE SPREAD TIP

3/4” (19mm) long-wearing single shoot tip with extra long carbide on the nose for highly abrasive conditions. Used for seeding or fertilizing (not for double shooting).

Fits: VOS (Versatile Opener System)

PAIRED ROW REPLACEABLE TIPS
610-TIP-3581
610-TIP-3581
610-TIP-3581
610-TIP-3581
Vos-seeding-diagram-3581
610-TIP-3581

CARBIDE TIP

3-1/2” (89mm) paired row cast chrome tip with 3/4” (19mm) vertical separation of liquid, granular, or aqua NH3 fertilizer. Carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside of the wing maintain a sharp cutting edge. Carbide inserts at the back of the underside of the wings seal the fertilizer trench prior to seed placement.

Fits: VOS (Versatile Opener System)

610-TIP-4030
610-TIP-4030
610-TIP-4030
Vos-seeding-diagram-4030-688-HLD-1000
610-TIP-4030

CARBIDE TIP

4” (102mm) paired row cast tip with carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside of the wing to maintain a sharp cutting edge. This paired row liquid or granular double shoot tip has no vertical seed/fertilizer separation.

610-TIP-4035
610-TIP-4035
610-TIP-4035
610-TIP-4035
610-TIP-4035

CARBIDE TIP

4” (102mm) paired row cast tip with extra long carbide insert on the nose for excellent penetration and wear resistance. These tips have a 3/4″ (19mm) vertical drainage trench. Carbide inserts on the underside of the wing to maintain a sharp cutting edge. This paired row liquid or granular double shoot tip has no vertical seed/fertilizer separation.

READ MORE

610-TIP-4041
610-TIP-4041
610-TIP-4041
610-TIP-4041
Vos-seeding-diagram-4041
610-TIP-4041

CARBIDE TIP

4” (102mm) paired row cast chrome tip with carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside of the wing to maintain a sharp cutting edge.

This paired row liquid or granular double shoot tip has no vertical seed/fertilizer separation.

READ MORE

610-TIP-4081
610-TIP-4081
610-TIP-4081
610-TIP-4081-underside-BTT-Bourgault-Tillage-Tools-Replaceable-Tip
610-TIP-4081/4082/4085

CARBIDE TIP

4” (102mm) paired row cast chrome tip with carbide insert on the nose for excellent penetration and wear resistance. These tips have 3/4”(19mm) vertical separation of granular, liquid, aqua NH3, or aqua NH3 + phos fertilizer. Carbide inserts on the underside of the wing maintain a sharp cutting edge. Carbide inserts at the back of the underside of the wings seal the fertilizer trench prior to seed placement.

610-TIP-4082 has additional carbide below the wings, along the sides of the fertilizer trench, to provide extra-wear life. Not recommended for use on Case IH 800/900 or NH P2070.

Fits: VOS (Versatile Opener System)

READ MORE

610-TIP-6082
610-TIP-6082
610-TIP-6082
610-TIP-6082
Vos-seeding-diagram-6082
610-TIP-6082

CARBIDE TIP

6” (152mm) paired row cast tip with carbide insert on the nose for excellent penetration and wear resistance. These tips have 3/4” (19mm) vertical separation of liquid, granular, aqua NH3, or aqua NH3 + phos fertilizer.

Carbide inserts on the underside of the wing maintain a sharp cutting edge. Carbide inserts at the back of the underside of the wings seal the fertilizer trench prior to seed placement. Additional carbide is placed along the sides of the fertilizer trench, below the wings, to provide extra-wear life.

Fits: VOS (Versatile Opener System)

SIDE BAND REPLACEABLE TIPS
612-TIP-0211
612-TIP-0211
612-TIP-0211
612-TIP-0212
612-TIP-0212
612-TIP-0211
Seeding-diagram-0211-0212
612-TIP-0211 / 0212

CHROME TIP

Side band cast chrome tip with carbide inserts on the nose and the underside of the wing for excellent penetration and wear resistance. The seed is placed in a 3/4” (19mm) band onto a firm seedbed. Starter frtilizer is placed to the side onto a slightly lower shelf than the seed.

612-TIP-0211 (left wing)
612-TIP-0212 (right wing)

Fits: Bourgault TriMax™ Triple-Shoot System

READ MORE

612-TIP-0711
612-TIP-0711
612-TIP-0711
612-TIP-0712
612-TIP-0712
612-TIP-0712-underside-BTT-Bourgault-Tillage-Tools-Replaceable-Tip
Seeding-diagram-2711-2712
612-TIP-0711 / 0712

CHROME TIP

Side band cast chrome tip with carbide inserts on the nose and the wing for excellent penetration and wear resistance. The seed is placed in a 3/4” (19mm) band onto a firm, unfractured seedbed. Fertilizer is delivered in a band off to the side (right or left) on the same level as the seedbed.

612-TIP-0711 (left wing)
612-TIP-0712 (right wing)

Fits: Bourgault, C-Shank, Case IH, Morris, Väderstad Seed Hawk

READ MORE

614-TIP-2711
614-TIP-2711
614-TIP-2711
614-TIP-2712
614-TIP-2712
614-TIP-2712-underside-BTT-Bourgault-Tillage-Tools-Replaceable-Tip-
Seeding-diagram-2711-2712
614-TIP-2711 / 2712

CARBIDE TIP

Side band cast chrome tip with carbide inserts on the nose and the wing for excellent penetration and wear resistance. A carbide wafer on the bottom of the fertilizer trough prevents bottom wear and keeps the fertilizer trench open. The seed is placed in a 1-1/2” (38mm) band 3/4” (19mm) above and to the side of the fertilizer row after the fertilizer trench has been closed by the wing.

614-TIP-2711 (left wing)
614-TIP-2712 (right wing)

Fits: Bourgault, C-Shank, Case IH, Morris

READ MORE

FERTILIZER REPLACEABLE TIPS
600-TIP-7500
600-TIP-7500
600-TIP-7500
600-TIP-7500

CARBIDE TIP

3/4” (19mm) chrome fertilizer tip with carbide on the nose.

Fits: 410, 599, 600, 602 & 607 Series knife holders.

600-TIP-7501
600-TIP-7501
600-TIP-7501
600-TIP-7501

CARBIDE TIP

3/4” (19mm) chrome fertilizer tip with extra long carbide on the nose.

Fits: 410, 599, 600, 602 & 607 Series knife holders.

600-TIP-7502
600-TIP-7502
600-TIP-7502
600-TIP-7502

CARBIDE TIP

3/4” (19mm) chrome fertilizer tip with extra long carbide on the nose.

Fits: 410, 599, 600, 602 & 607 Series knife holders.

600-TIP-7507
600-TIP-7507
600-TIP-7507
600-TIP-7507

CARBIDE TIP & WING

3/4” (19mm) carbide fertilizer tip and wing for liquid application. This allows vertical and horizontal separation when double-shooting with liquid.

Fits: 600-KNH-7562 holder only
