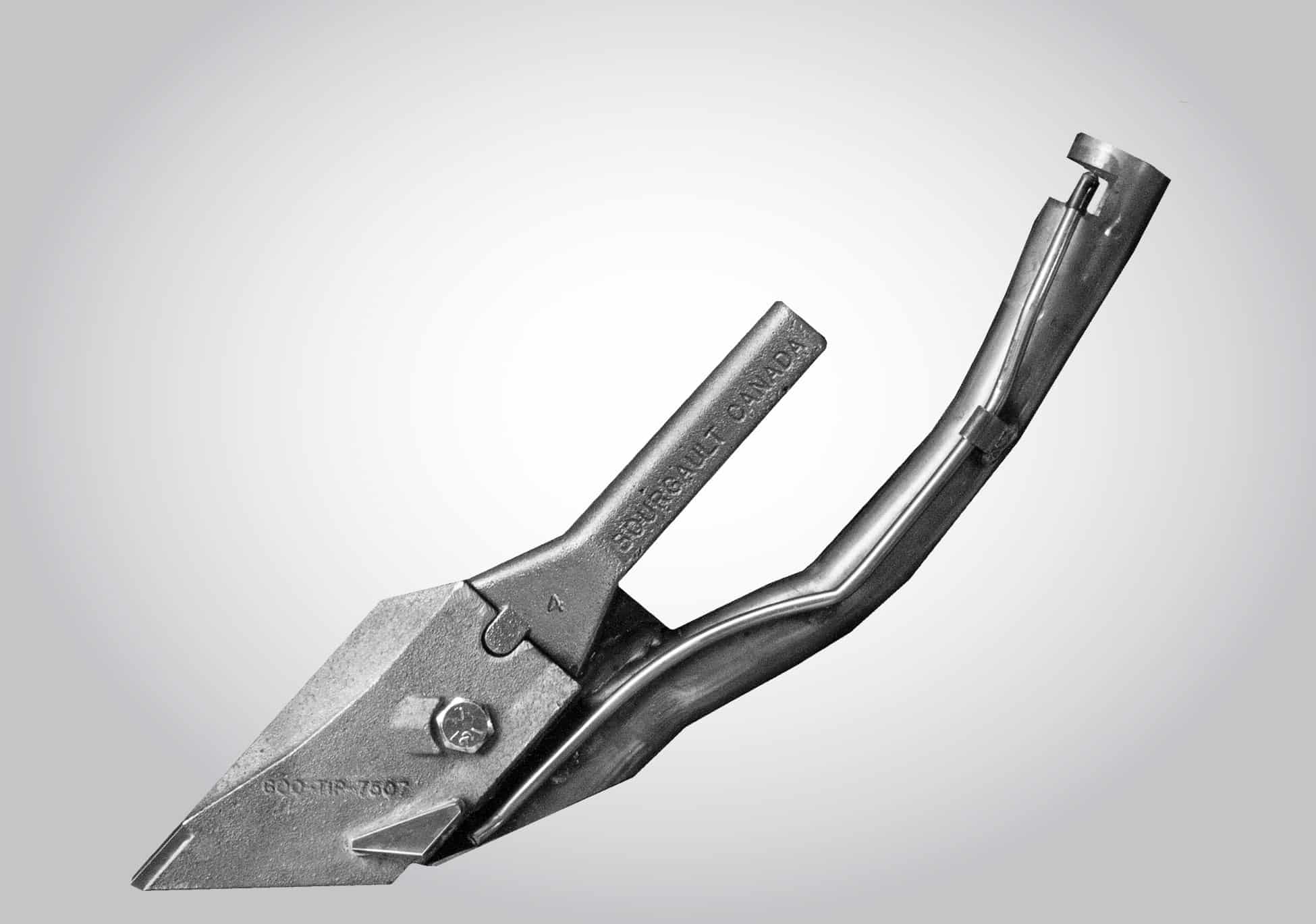

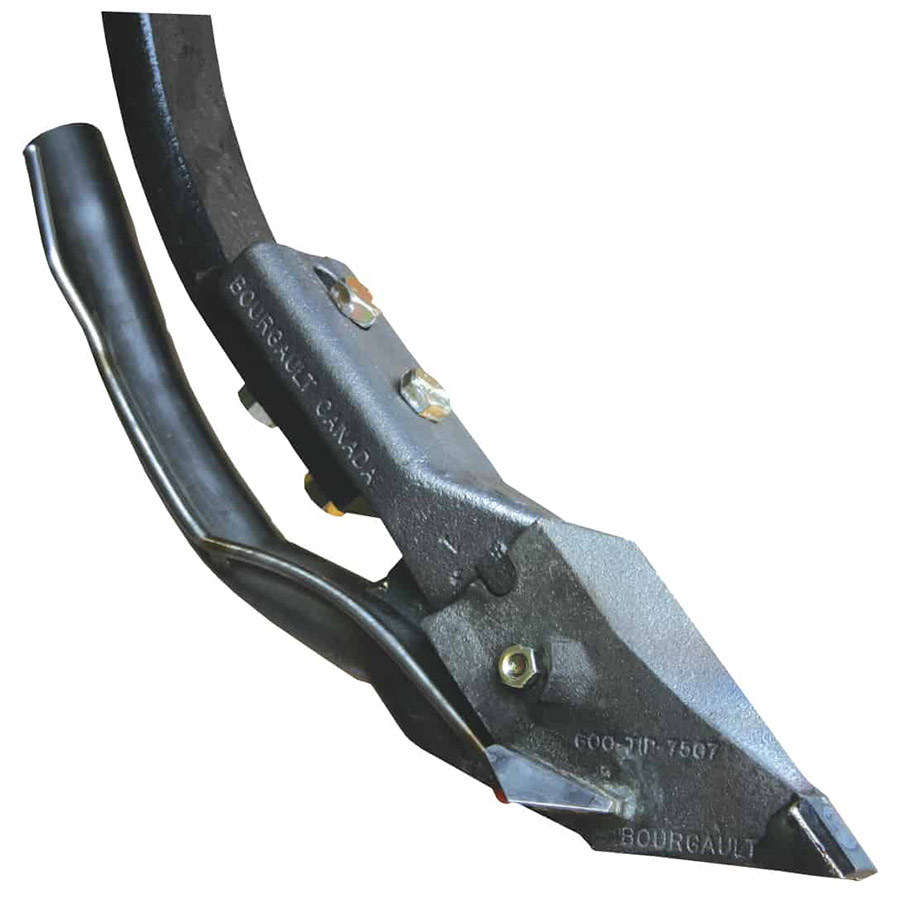

SIDE BAND OPENER

Fits: 47° and 50° C-Shank

Fertilizer Type: Liquid N

Tube Size:
Granular: 1-1/4” (32 mm) O.D.
Liquid: 1/4” (6 mm) O.D.

Bolt Hole Spacing: 1-3/4”  to 2-1/2” (44 – 64 mm) slotted bolt hole spacing providing the ability to fit many different makes and models.

Tip Options: Used with the replaceable tip 600-TIP-7507. The high-chrome tip is protected with a carbide insert on the nose and a solid carbide wing. The carbide placement provides sharp cutting edges for excellent penetration. Tip sold separately.

Overview: Provide good horizontal separation with a slight vertical seed/fertilizer separation. Work well when used with a pressurized liquid system. They are used with a replaceable tip to ensure high-wear points can be replaced at a lower cost.

Notes: Installation bolts sold separately. Use 1/2” Hex Head Grade 8 bolts.
