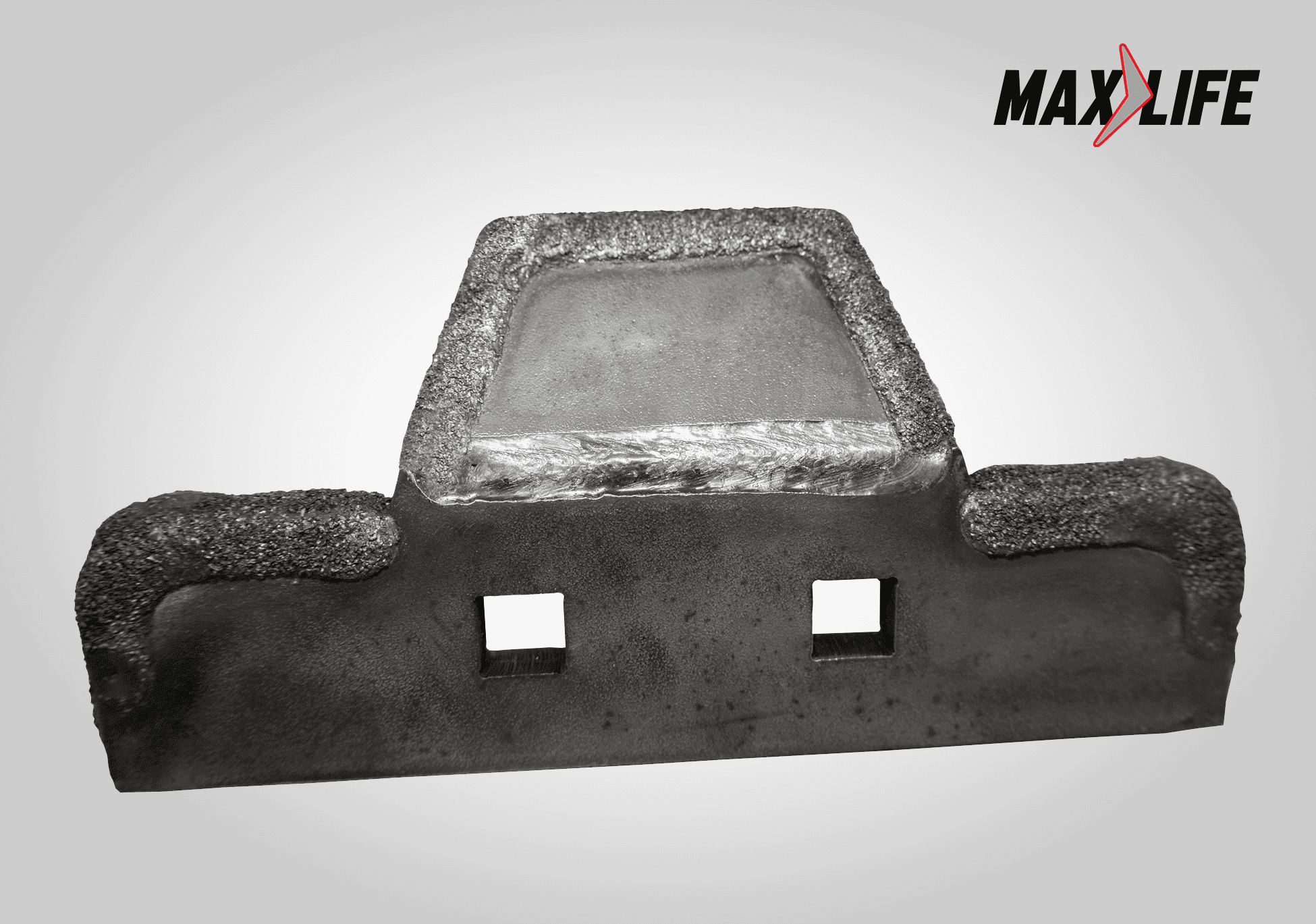

MAX LIFE™ Carbide Edge

The MAX LIFE process infuses tungsten carbide onto wear parts, creating the toughest, most economical, and longest-lasting tillage tools available. MAX LIFE hard facing is cost effective and increases the useful life of wear parts longer than other hard facing processes. Years of rigorous field tests consistently show that the useful life is extended many times over, depending on the application.

Fits: Brillion, CNH: 870 & 875, DMI, John Deere: 510, 512, 910, 912, 2720, 2730 & 3700, Krause: Dominator, Landoll & Wil-Rich

Overview: The main body of the Deep Ripper is cast chrome with MAX LIFE™ carbide embedded on the underside of the nose for extra-long wear life. The bolt holes are re-enforced by extra-heavy cast plate to ensure long lasting life.

The Deep Ripper is used to penetrate compacted soils and mechanically break up the soil hard pan. Replaceable wings allow for quick and easy change overs to different wing profiles without having to remove the entire ripper from your machine.

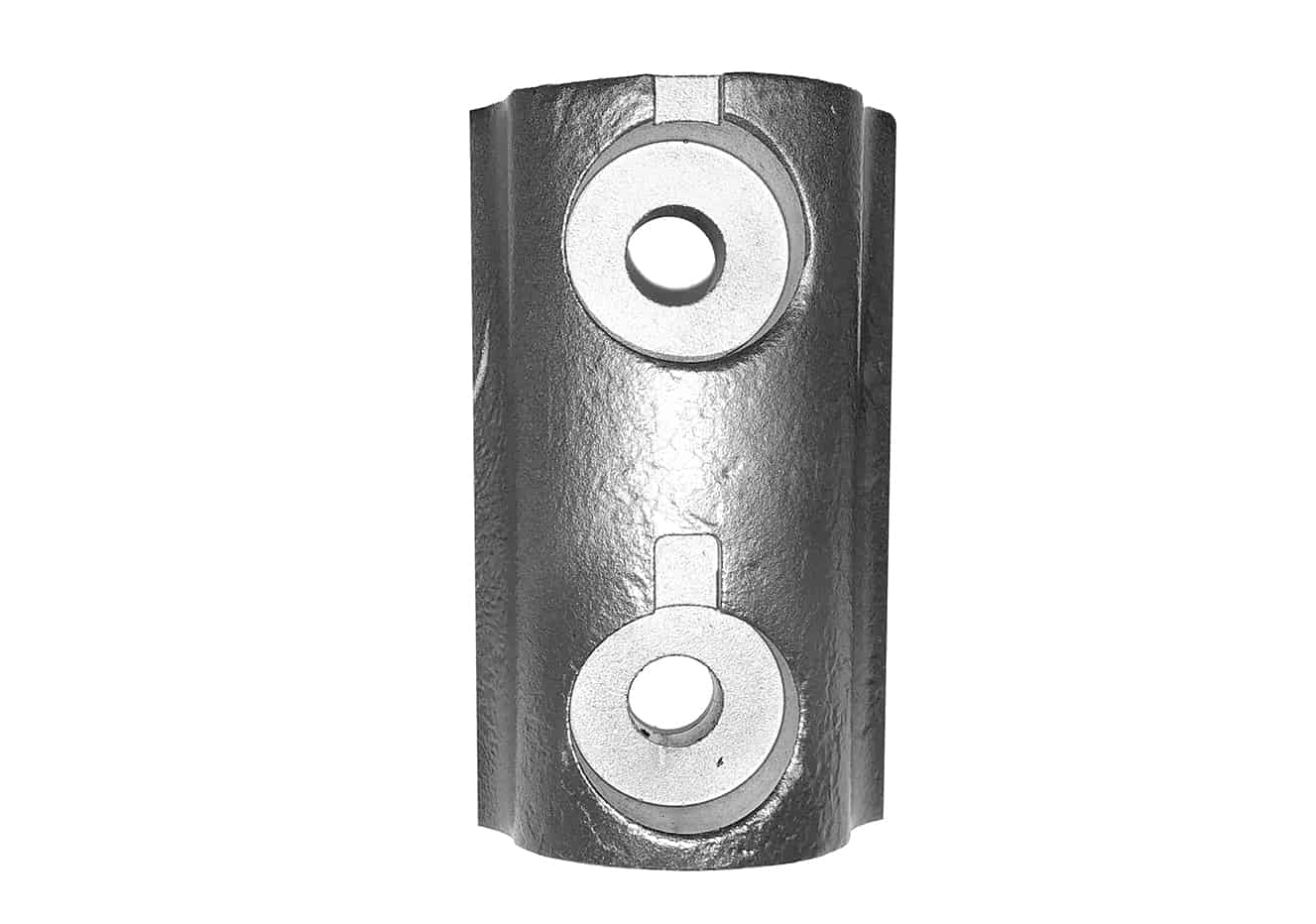

Profile: N/A

Width: No wings, standard cap only

Overview: Heat applied, embedded carbide has been added to the leading edge of the wings for extra-long wear life. Wings are available in two widths, with two different profiles allowing you to choose the right wing for your conditions. The polyurethane caps fit snugly over of the bolts to protect the bolts during the ripping process.

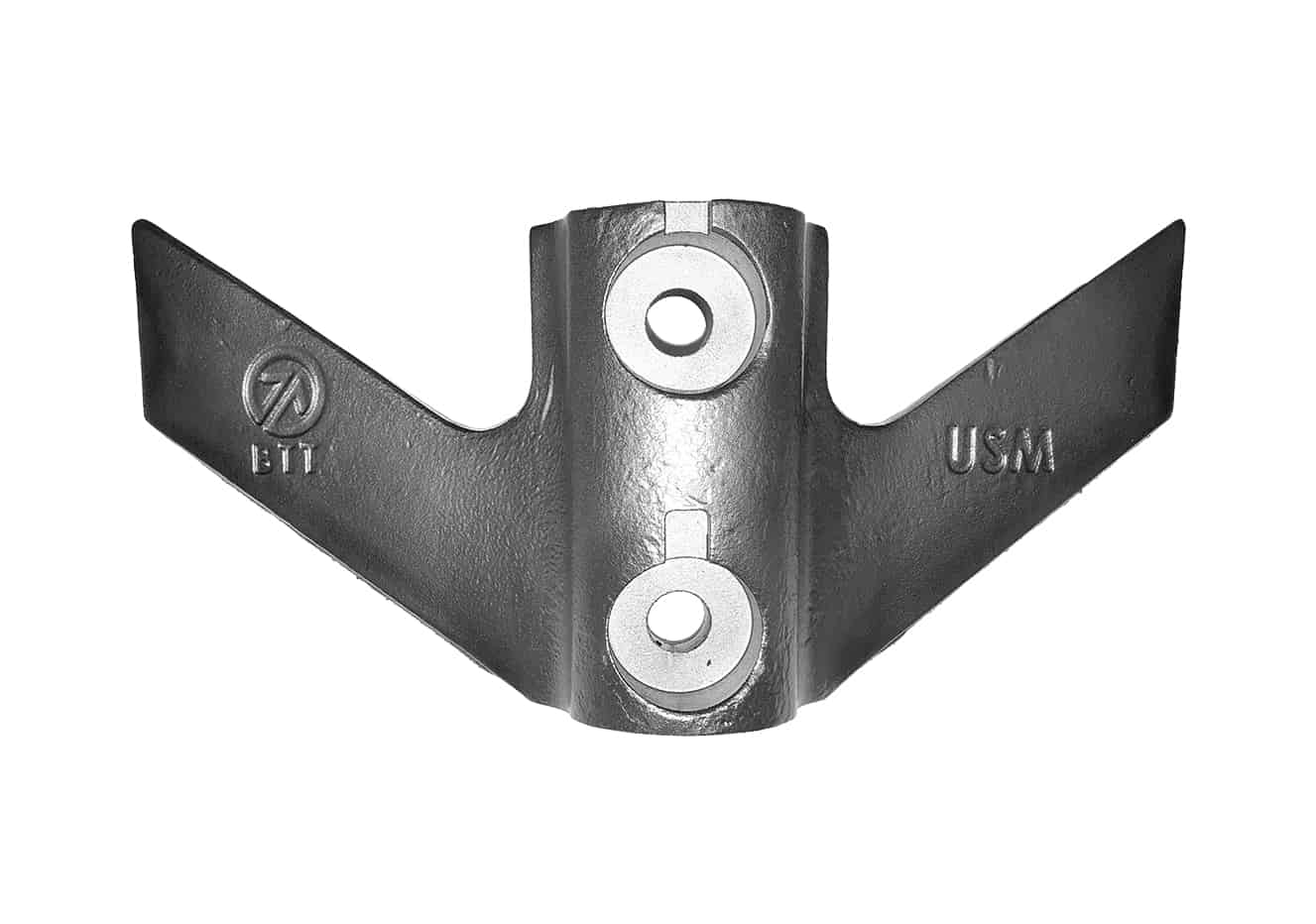

Profile: Standard

Width: 7″ (178 mm)

Overview: Heat applied, embedded carbide has been added to the leading edge of the wings for extra-long wear life. Wings are available in two widths, with two different profiles allowing you to choose the right wing for your conditions. The polyurethane caps fit snugly over of the bolts to protect the bolts during the ripping process.

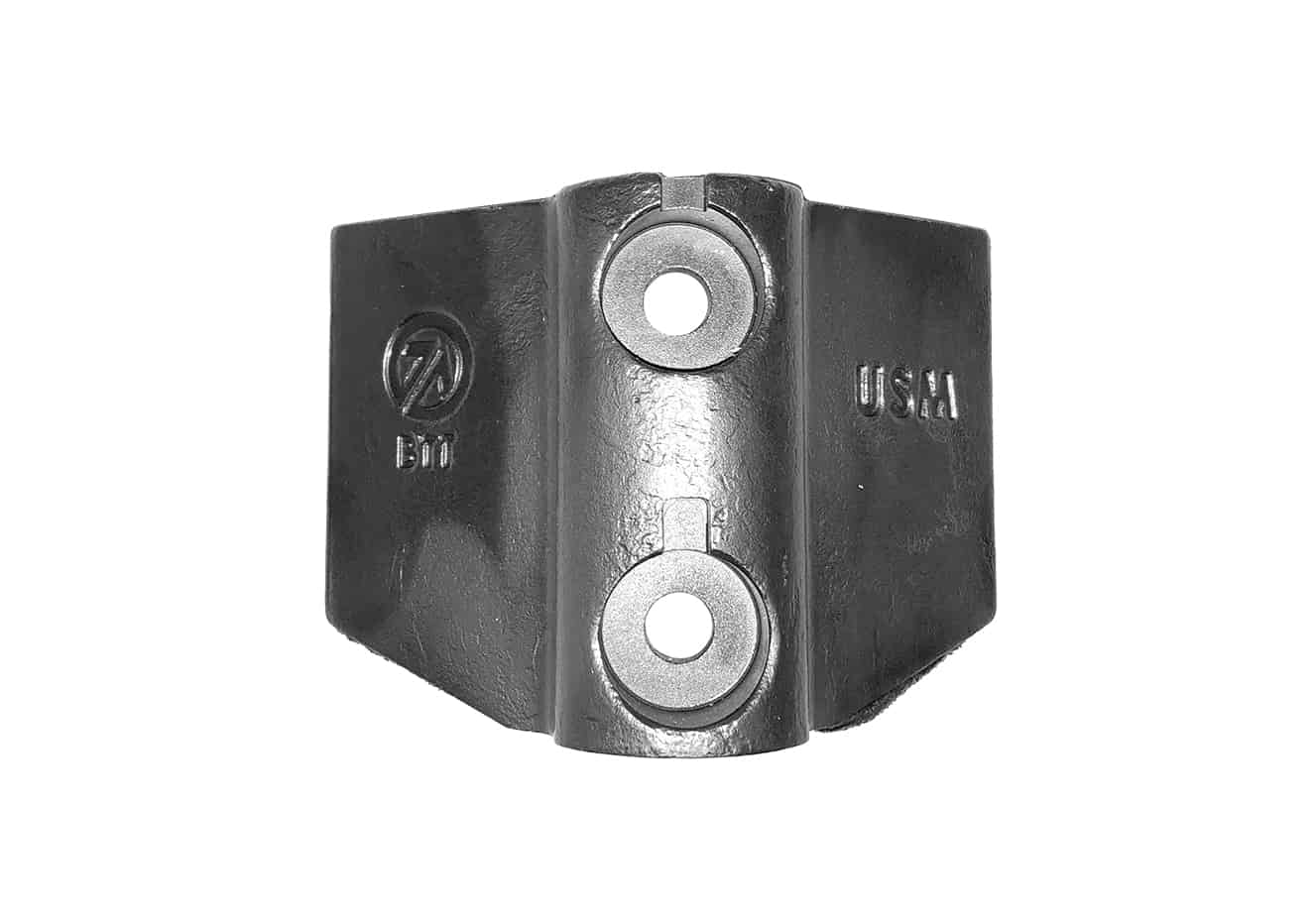

Profile: Flat Profile for Low Draft

Width: 12″ (305 mm)

Overview: Heat applied, embedded carbide has been added to the leading edge of the wings for extra-long wear life. Wings are available in two widths, with two different profiles allowing you to choose the right wing for your conditions. The polyurethane caps fit snugly over of the bolts to protect the bolts during the ripping process.

Fits: Summers/Herman (OEM #8H11105)

Coil I.D.: 1-15/16″

Dimensions: 3/8″ diameter x 8-1/4″ wide x 14-1/2″ high

Fits: Bourgault (OEM #2070-27)

Coil I.D.: 1-13/16″

Dimensions: 3/8″ diameter x 8″ wide x 17″ high

Fits: John Deere (OEM #N236890)

Coil I.D.: 2-1/16″

Dimensions: 7/16″ diameter x 9″ wide x 16″ high

Fits: Bourgault/Delmar (OEM #2070-77, 2070-77-01)

Coil I.D.: 2-1/8″

Dimensions: 7/16″ diameter x 10″ wide x 20″ high

Fits: Salford (OEM #R60000)

Coil I.D.: 2-9/16″

Dimensions: 1/2″ diameter x 10″ wide x 20″ high

Fits: Bourgault XR770(OEM #2070-79, 2070-79-01)

Coil I.D.: 2-11/16″

Dimensions: 1/2″ diameter x 10″ wide x 22″ high

Fits: Bourgault 9500CP (OEM #2070-76)

Coil I.D.: 2-5/8″

Dimensions: 1/2″ diameter x 8″ wide x 20″ high

Fits: John Deere (OEM #21370, 12137000)

Coil I.D.: 2″

Dimensions: 1/2″ diameter x 12-1/4″ wide x 20″ high

Fits: Elmer’s (OEM #21370, 12137000)

Coil I.D.: 2-3/4″

Dimensions: 1/2″ diameter x 10″ wide x 22″ high

Fits: Morris (OEM #H27900)

Coil I.D.: 2-9/16″

Dimensions: 1/2″ diameter x 10″ wide x 27″ high

Fits: CNH/Flexi-Coil (OEM #87505461)

Coil I.D.: 2-9/16″

Dimensions: 1/2″ diameter x 12-3/8″ wide x 22″ high

Fits:
Bourgault (OEM #2070-28)
Brandt (OEM #B021750)
Flexi-Coil (OEM #90081C, 87445314)
Gates (OEM #120240, 120241)
Rite Way (OEM #404-0010, 404-0028)
Summers/Herman (OEM #8H1190S)

Coil I.D.: 2-5/8″

Dimensions: 9/16″ diameter x 12″ wide x 26″ high

Fits:
Morris (OEM #H49499)

Coil I.D.: 2-5/8″

Dimensions: 9/16″ diameter x 10″ wide x 27″ high

Fits:
Bourgault (OEM #2070-70, 8606-13)
Brandt (OEM #B021751, C516584)
Gates (OEM #120229, 120230)
Summers/Herman (OEM #8H1195S)

Coil I.D.: 2-5/8″

Dimensions: 5/8″ diameter x 12-1/2″ wide x 27″ high

Fits: 200 Series Speed-Loc™ (47° Shank)

Overview: 2” (50 mm) wide, 5/8” (15 mm) thick and 9” (230 mm) long

Heat applied, embedded carbide has been added to the leading edge of this heavy-duty quick change spike. It has a hardened wear pad (52-56 HRC) for extra life. This tool is ideal for primary tillage or banding fertilizer.

Fits: 200 Series Speed-Loc™ (47° Shank)

Overview: 5/8” (15 mm) thick, 2-1/4” (57 mm) wide and 6” (150 mm) long

Heat applied, embedded carbide has been added to the nose of this quick change spike. It has a hardened wear pad (52-56 HRC) for extra life. This tool is ideal for primary tillage or banding fertilizer.

Fits: 200 Series Speed-Loc™ (47° Shank)

Overview: 1/4” (6 mm) thick and 4” (100 mm) wide

Heat applied, embedded carbide has been added to the underside of this sweep. It is designed mainly for fall tillage or deep working. It has a hardened wear pad (52-56 HRC) which increases the life expectancy.

The nose on this sweep runs 1/2” (12 mm) lower than the other 200 Series sweeps. This increased pitch improves penetration in hard or compacted ground.

Fits: 410 Series Speed-Loc™

Overview: 5/16” (8 mm) thick and 4” (100 mm) wide

Heat applied, embedded carbide has been added to the underside of this sweep. The sweep has a 3/8” hardened wear pad (52-56 HRC) for longer life. This sweep runs at a 13° pitch, which is steeper than the regular 410 sweep.
