“Was a tough spring for wear on sweeps but the BTT sweeps are a good product, I think they wore more evenly and slightly longer than the competitor’s sweep, hard to tell how much longer they lasted due to the dry soil. I liked the longer neck on them as well. The bottom bolt gets wear on it before they need to be changed but that longer neck seems to minimize that.”

Kyle Jorgenson, Benson County, North Dakota on running 050-PWV-1608 sweeps on their 2410 John Deere.

“We are using the BTT 200 12″ sweeps with a 6″ spreader boot. They are very easy to install and remove. Also seem to last longer than the Deere sweeps we were using previously.”

Scott Sutton, Lloydminster, SK

SWEEPS, CHISEL PLOW POINTS, SPIKES & SHANK SAVERS

Blue Armour
Several field tests conducted in North America and Europe show that Blue Armour cultivator sweeps have a 24-30% longer wear life with reduced stem wear. It is available in most Bolt-On and Speed-Loc™ Quick Change lines. Look for the Blue Armour shield in the products below.

Speed-Loc™ Series
Speed-Loc™ Quick Change Series fit various machines making it easy to change between BTT openers, fertilizer knives, cultivator sweeps, and spikes. The Speed-Loc™ Adapter’s upper stop ensures tillage or seeding tools are always running at the same depth, while the spring-loaded locking pin ensures products stay securely in place in all conditions. We back that up with a 100% guarantee.

Bolt-On Series
Bolt-on cultivator sweeps made with precise heat treatments fit any make and model of tillage equipment, have a durable design, and consistent quality.

Richmond Brothers Equipment Ultimate Tillage Tools
The high center crown design of Richmond cast cultivator sweeps gives an overall smoother field finish with considerably less slabbing in sticky conditions. Sweeps have an aggressive point and a more durable cutting edge for excellent weed-cutting and an unbeatable wear-life.

Shank savers prevent wear on the sides of a shank and are created using the same long-lasting chrome-cast material as ripper points. Two styles are available with custom-fabrication possible to fit most brands.

200 SERIES SPEED-LOC™

200-Sweeps-Blue-Armour
200 SERIES SWEEPS

Our cultivator sweeps boast long-lasting designs, precise heat treatments, consistent quality, and innovative Speed-Loc™ technology.

READ MORE

200-GFO-0308-Blue-Armour
200-GFO-0308

This “Goosefoot” tillage tool is 5/16” (8mm) thick and 2-1/2” (63mm) wide. It is designed specifically for vibrating S-tine cultivators.

READ MORE

cultivator sweep 200-PWV-0405
200-PWV-0405

This cultivator sweep is designed mainly for primary tillage or banding fertilizer. It has a hardened wear pad which increases the life expectancy. The nose runs 1/2″ (12mm) lower than the other 200 Series sweeps. This increased pitch improves penetration in hard or compacted ground.

READ MORE

max life cultivator sweep 200-PWV-0405ML
200-PWV-0405ML

Heat applied, embedded carbide has been added to the underside of this cultivator sweep. The sweep is 1/4” (6mm) thick and 4” (100mm) wide. It is designed mainly for primary tillage or banding fertilizer. The nose on this cultivator sweep runs 1/2” (12mm) lower than the other 200 Series sweeps. This increased pitch improves penetration in hard or compacted ground.

READ MORE

cultivator sweep 200-PWV-0428
200-PWV-0428

This cultivator sweep is designed mainly for fall tillage or deep working. The sweep is 5/16″ (8mm) thick, 4″ (100mm) wide, with a 3/8″ x 2″ hardened wear pad which increases its life expectancy.

cultivator sweep 200-PWV-0528
200-PWV-0528

This cultivator sweep is designed mainly for fall tillage or deep working. The sweep is 5/16″ (8mm) thick, 5″ (127mm) wide, with a 3/8″ x 2″ hardened wear pad which increases its life expectancy.

cultivator sweep 200-pwv-0928
200-PWV-0928

This cultivator sweep is 5/16″ (8mm) thick, 9″ (230mm) wide, with a 3/8″ x 2″ hardened wear pad that extends up the entire stem.

READ MORE

quick change spike 200-SPK-0200
200-SPK-0200

This quick change spike is 5/8″ (57mm), 2-1/4″ (57mm) wide, and 6″ (150mm) long. It has a hardened wear pad for extra life. This tool is ideal for primary tillage or banding fertilizer.

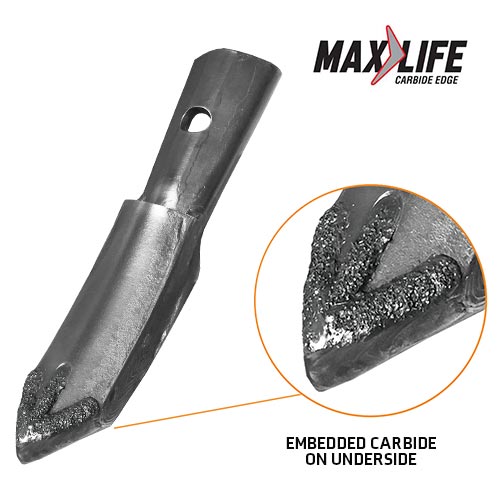

max life spike 200-SPK-0200ML
200-SPK-0200ML

Heat applied, embedded carbide has been added to the nose of this quick change spike. This spike is 5/8″ (57mm) x 2-1/4″ (57mm) wide x 6″ (150mm) long. It has a hardened wear pad for extra life. This tool is ideal for primary tillage or banding fertilizer.

quick change spike 200-SPK-0215
200-SPK-0215

This quick change spike is 5/8″ (15mm) thick, 2-1/4″ (57mm) wide, and 6″ (150mm) long. It has a hardened wear pad that extends to the top of the stem to prevent wear in abrasive soil or when working at greater depths.

quick change spike 200-SPK-0230
200-SPK-0230

This quick change spike is 5/8″ (15mm) thick, 2″ (50mm) wide, and 4″ (102mm) long. It has a hardened wear pad for extra life. This tool is made specifically for slurry injection.

READ MORE

410 SERIES SPEED-LOC™

410-Sweeps-Blue-Armour
410 SERIES SWEEPS

Our cultivator sweeps boast long-lasting designs, precise heat treatments, consistent quality, and innovative Speed-Loc™ technology.

READ MORE

410-PWV-0418

These cultivator sweeps have a 3/8″ x 2″ hardened wear pad for longer life. It runs at a 13° pitch, which is steeper than the regular 410 sweeps, this results in more disturbance.

READ MORE

410-PWV-0418ML
410-PWV-0418ML

Heat applied, embedded carbide has been added to the underside of this cultivator sweep. The sweep has a 3/8” x 2″ hardened wear pad (52-56 HRC) for longer life. This cultivator sweep runs at a 13° pitch, which is steeper than the regular 410 sweeps.

READ MORE

cultivator swewp 410-PWV-0518
410-PWV-0518

This cultivator sweep has a 3/8″ x 2″ hardened wear pad for longer life. It runs at a 3° pitch, the same as a standard sweep.

spike 410-spk-0200
410-SPK-0200

This heavy-duty spike has a 3/8″ x 2″ hardened wear pad (52-56 HRC) for longer life. It works well for primary tillage or banding fertilizer.

410-spk-0200-ML
410-SPK-0200ML

Heat applied, embedded carbide has been added to the underside of this quick-change spike. The spike is 2” (50mm) wide, 5/8” (15mm) thick and 9” (230mm) long. It has a hardened wear pad (52-56 HRC) for extra life. This spike is ideal for primary tillage or banding fertilizer.

BOLT-ON SERIES

BOLT-ON SWEEPS

Our cultivator sweeps boast long-lasting designs, precise heat treatments, consistent quality, designed to fit any make and model of tillage equipment.

READ MORE

070-RCH-0451-Blue-Armour
070-RCH-0451

This reversible chisel is used for primary tillage in the fall or early spring.

READ MORE

070-RCH-0452-Blue-Armour
070-RCH-0452

This chisel is used for primary tillage in the fall and early spring.

READ MORE

reversible spike 070-rsp-0200a
070-RSP-0200A

Fits: Any chisel plow shank except Bourgault chisel plow and Morris LH 755 shank

Shorter than our other two reversible spikes, it is designed for light to medium-duty field cultivators or for chisel plows where ground clearance in transport is a concern.

READ MORE

reversible spike 070-rsp-0210a
070-RSP-0210A

Fits: Bourgault chisel plow and Morris LH 755 shank

Flat through the bolt hole section, this reversible spike is designed specifically to fit the Bourgault chisel plow as well as the Morris LH 755 shank.

reversible spike 070-rsp-0220a
070-RSP-0220A

This spike is curved at the bolt hole section, it can be used on any chisel plow shank except the Bourgault and Morris LH 755 shank.

max life reversible chisel 070-RCH-0451ML
070-RCH-0451ML

This reversible chisel has heat applied, embedded carbide added to the underside. It is used mostly for primary tillage in the fall or early spring.

READ MORE

max life reversible chisel 070-RCH-0452ML
070-RCH-0452ML

This reversible chisel has heat applied, embedded carbide added to the underside. It is used mostly for primary tillage in the fall or early spring.

READ MORE

030-HLD-2000
030-HLD-2000

Fits: John Deere 2210 47° shank, Salford Curved Flat S-Tine two-piece shank

This holder allows the use of our 200 Series tips, providing a much longer wearing alternative to what is currently common in the industry. Shown with 200-TIP-0802.

RICHMOND BROTHERS EQUIPMENT ULTIMATE TILLAGE TOOLS

richmond brothers cast sweep 810-SIH-0700
810-SIH-0700

Fits: Case IH

Richmond Brothers Equipment Part #: RB7IH

Size: 7”

Description: 47°, 1-3/4” Centers, 7/16” Bolt

richmond brothers cultivator sweep 810-SIH-0900
810-SIH-0900

Fits: Case IH

Richmond Brothers Equipment Part #: RB9IH

Size: 9”

Description: 47°, 1-3/4” Centers, 7/16” Bolt

richmond brothers cast sweeps John Deere 810-SJD-0700
810-SJD-0700

Fits: John Deere

Richmond Brothers Equipment Part #: RB7JD

Size: 7”

Description: 47°, 1-3/4” Centers, 7/16” Bolts

richmond brothers cast sweep John Deere 810-SJD-0900
810-SJD-0900

Fits: John Deere

Richmond Brothers Equipment Part #: RB9JD

Size: 9”

Description: 47°, 1-3/4” Centers, 7/16” Bolts

richmond chisel plow point 810-CPP-0200
810-CPP-0200

Chisel Plow Point

Richmond Brothers Equipment Part #: RBDC

Size: 2”

Description: Reversible, 1-3/4 “- 2-3/4” Hole Centers

richmond brothers chisel plow point 810-CPP-0750
810-CPP-0750

Chisel Plow Point

Richmond Brothers Equipment Part #: RBPR

Size: 7-1/2”

Description: Wing, 50°, 2-1/4” Hole Centers, 1/2” Bolts

richmond brothers sweep 810-SKG-0275
810-SKG-0275

Chisel Plow Point

Fits: Konglskilde

Richmond Brothers Equipment Part #: RB234K

Size: 2-3/4”

Description: Single 7/16” Bolt

richmond brothers cultivator sweep 810-SKG-0400
810-SKG-0400

Chisel Plow Point

Fits: Konglskilde

Richmond Brothers Equipment Part #: RB4K

Size: 4”

Description: Duck Foot, Single 7/16” Bolt

richmond brothers shank saver 815-RSS-0010
815-RSS-0010

Fits: Case IH 870/875

Richmond Brothers Equipment Part #: RBSSCW

Description: Designed to be wider than the shank to prevent wear. Wedge-style shank saver offers less draft and helps keep trash from digging into the shank.

richmond brothers shank saver 815-RSS-0020
815-RSS-0020

Fits: Kuhn Krause Dominator

Richmond Brothers Equipment Part #: RBSSDN

Description: Nugget style design, single shank saver. Designed to fill with dirt first so that your tillage tools remain protected.

815-RSS-0030

Fits: John Deere

Description: Nugget style design, single shank saver. Designed to fill with dirt first so that your tillage tools remain protected.

richmond brothers shank saver 815-RSS-0040
815-RSS-0040

Fits: Landoll-style Parabolic Shanks

Richmond Brothers Equipment Part #: RBSSLW

Description: Developed using a durable chrome cast formula, this wedge-style shank saver offers less draft and helps keep trash from digging into the shank.
