“Before using BTT openers, we were running an OEM opener and having issues with excessive component wear and breakage. We switched to the Titan Series openers and have changed one assembly in about 7,000 acres. Which is remarkable in itself, but honestly, we could hardly see a difference in wear from new to old. Great product! Well worth the investment.”

Trevor Smith, Spokane, Washington

ONE-PASS SEEDING WITH HORIZONTAL & VERTICAL SEPARATION

Titan Opener System Benefits

• 1/2” wide fertilizer knife for lower disturbance and more precise fertilizer placement.

• Adjustable seed boot allows flexible seed depth of 3/4” to 1-1/2” above fertilizer trench AND 1″ to 2-1/2″ placement on either side of the fertilizer trench.

• Three strategic carbide locations for additional wear life PLUS hard facing on key wear points that don’t have carbide.

• Modular design allows you to replace worn parts instead of the entire opener.

Titan Series Customizer

STEP 1: Choose Your Holder  |  STEP 2: Choose Your Seed Shoe  |  STEP 3: Choose Your Tip

For a more detailed view of these components check out the expanded drawing.

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

STEP 1: CHOOSE YOUR HOLDER

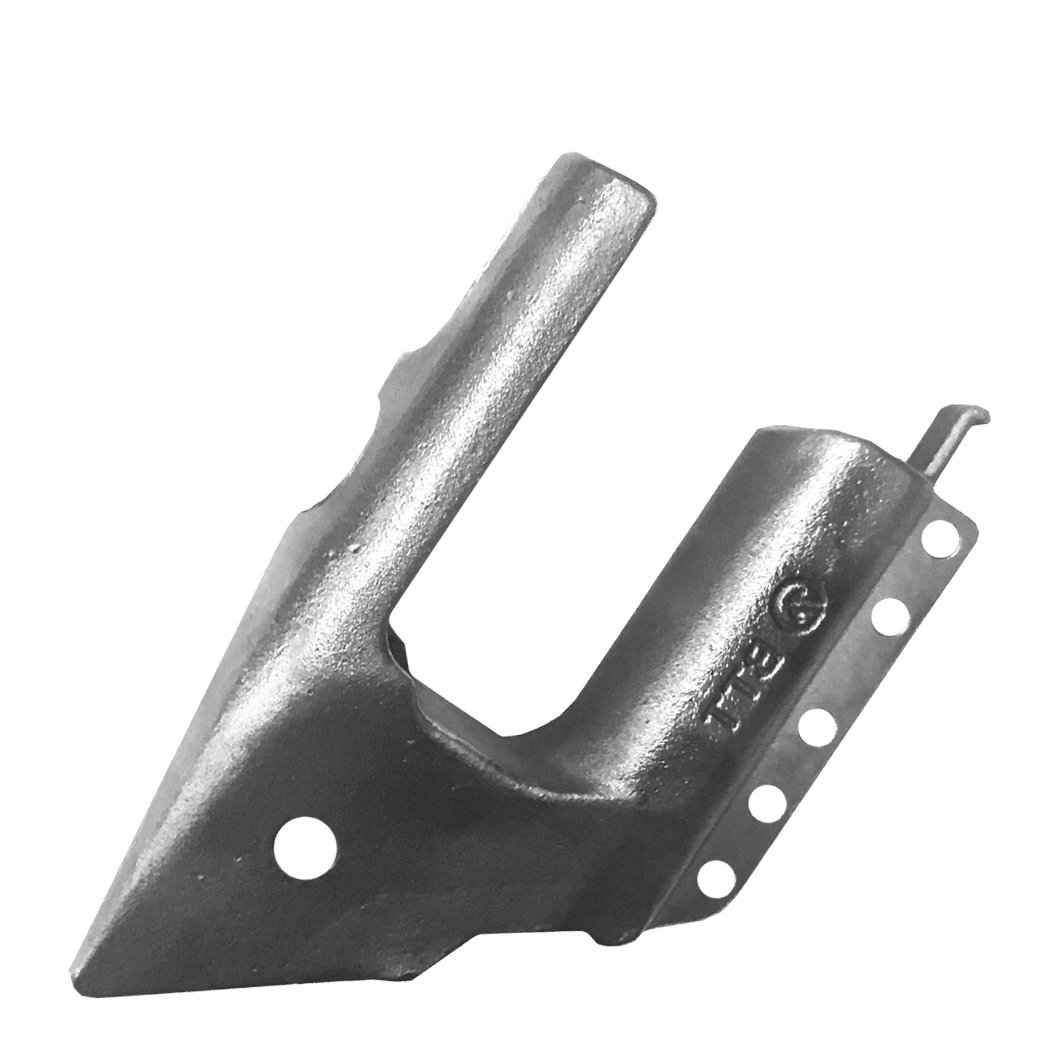

620-HLD-5000

Fits: 47° and 50° C-Shanks

Installation bolts and nuts included.

688-HLD-5000

Fits: Horsch 84° shank

Installation bolts and nuts included.

694-HLD-5000

Fits: Case IH ATX 700, New Holland P2060, Flexi-Coil 5500, Concord Edge On (84° shanks only)

When installing on units other than Concord, the insert 694-ACC-1000 is needed.

Installation bolts and nuts included.

STEP 2: CHOOSE YOUR SEED SHOE

620-SSH-1000

4” outside to outside (2-3/4” center to center) seed spread, placed above the center placed fertilizer trench.

620-SSH-4000

6” outside to outside (4” center to center) seed spread, placed above the center placed fertilizer trench.

620-SSH-6000

8” outside to outside (6” center to center) seed spread, placed above the center placed fertilizer trench.

When installing tip use 200-BNC-3100.

bourgault tillage tools_titan seeding diagram_620-SSH-1000
bourgault tillage tools_titan seeding diagram_620-SSH-4000
bourgault tillage tools_titan seeding diagram_620-SSH-6000

STEP 3: CHOOSE YOUR TIP

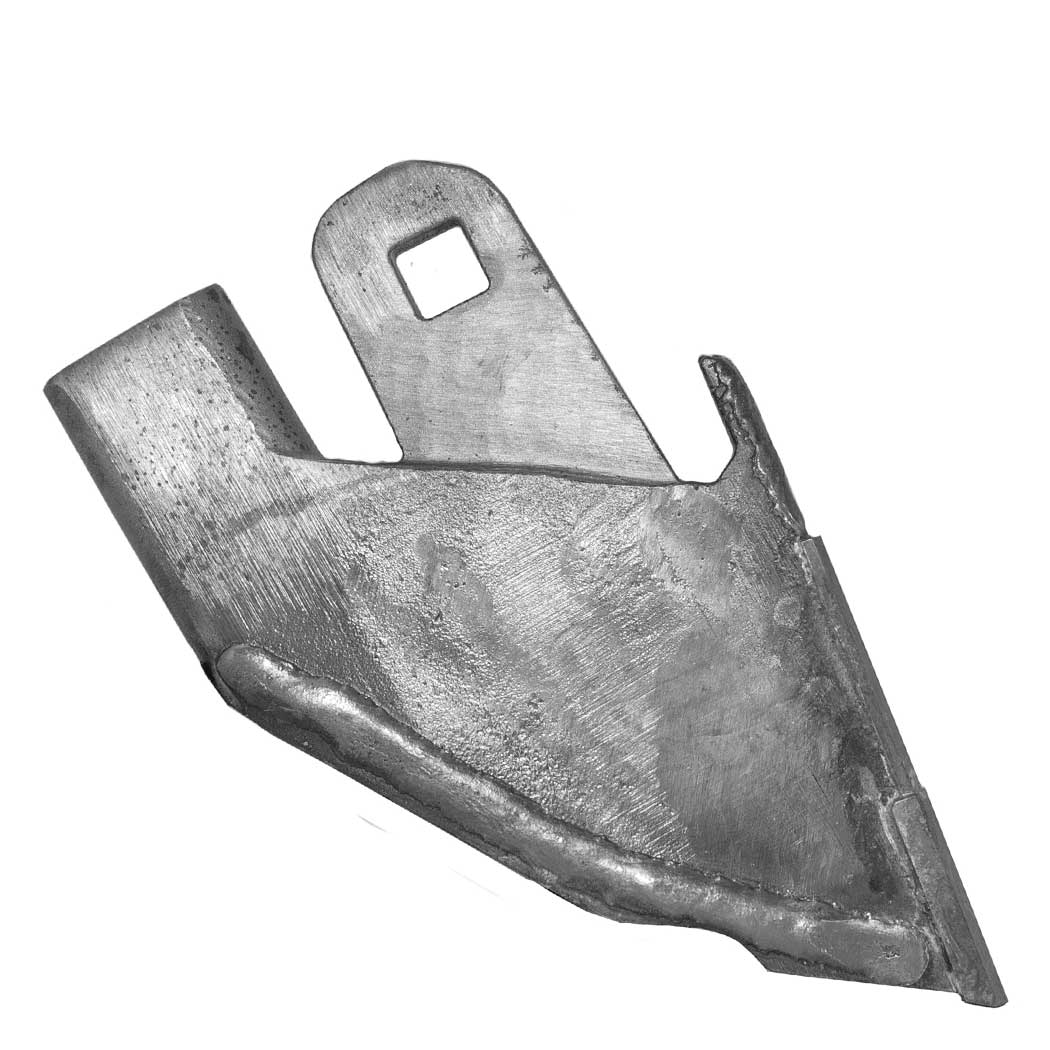

620-TIP-0510

Standard tip for 620, 688 & 694 holders. Carbide inserts are placed on the nose. Hard facing is placed on critical wear points for extended life of the tip. Use bolt and nut combo 620-BNC-3100 (5/16″ x 1-1/2″) to install shoe to holder.

NOTES: Use bolt and nut combo 200-BNC-3100 to install tips.

620-TIP-4060
620-TIP-4060
Bourgault Tillage Tools Titan Tip 620-tip-4060
620-TIP-4060

TRIPLE SHOOT UNIBODY TIP + SEED SHOE

Extra-long carbide inserts placed on the nose of the tip. The nose carbides have a continuous roofed profile, producing exceptional soil flow with minimal disturbance. The seed is placed in a distinct 4” paired row (2-3/4” center to center). The seed is deposited prior to the Aqua NH3 + Liquid Phos being placed 3/4” deeper, between the seed rows. The tip helps prevent skewing on hill sides. The shoe portion is 4” wide, with carbide fully covering the leading edges.

NOTES: This tip replaces the standard tip, seed shoe, fertilizer tube combinations, and is to be used with 628, 688 & 694 holders. Use bolt and nut combo 200-BNC-3100 to install tips.

bourgault tillage tools_titan seeding diagram_620-SSH-4060

4) CHOOSE YOUR FERTILIZER

bourgault tillage tools titan opener system 620-TUB-1021
620-TUB-1021

1/2″ (12mm) O.D. NH3 tube for 620, 688 & 694 holders. Includes all accessories shown.

For pressurized NH3 order this tube and consult your pressurized system dealer for tubing inserts.

bourgault tillage tools titan opener system 620-TUB-1070
620-TUB-1070

1/4″ (6mm) O.D. Aqua NH3 + Phos tube for 620, 688 & 694 series holders. Includes all accessories shown.

bourgault tillage tools titan opener system 620-TUB-4000
620-TUB-4000

0.4″ O.D. Stainless Steel Liquid or NH3 tube for 620, 688 & 694 series holders. Includes all accessories shown.

bourgault tillage tools titan opener system 620-TUB-4020
620-TUB-4040

0.4″ O.D. Stainless steel Aqua NH3 + Phos tube for 620, 688 & 694 series holders. Includes all accessories shown.

bourgault tillage tools titan opener system 628-TUB-1021
628-TUB-1021

1/2″ (12mm) O.D. NH3 tube for 628 holders. Includes all accessories shown.

For pressurized NH3 order this tube and consult your pressurized system dealer for tubing inserts.
