FLAT, WAVY & CONCAVE DISK BLADES
The special heat-treating process provides an increased hardness of the outer disk blade area that results in:
- 20-40% extended disc blade life,
- a self-sharpening wear pattern, and
- better fuel economy as less horsepower is required.
Niaux 200 uses patented technology to create disk blades that have consistently high qualities, including:
- maintaining tight tolerances for shape control,
- a machined edge for superior penetration in hard soil conditions, and
- a durable edge that stands up in rocky conditions with no chipping or cracking.
Lifetime warranty on disc blade breakage due to manufacturer defect.
Discs to Fit:
AgPro, Amity, Bourgault, CNH, Concord, Great Plains, John Deere, Lemken, Norwood, Pillar, Salford, Summers, Sunflower & Yetter.
For disk blade inquiries from Canada and the following U.S. states: WA, ID, MT, ND, MN & WI
For disk blade inquiries from all other areas in the U.S.
- Larry Hansen, Forges de Niaux
USAsales@forgesdeniaux.com
Bourgault MRB®
Replace your Mid Row Bander® disk blades with the manufacturer’s original.
MRB®, Mid Row Banders®, and Mid Row Bander® are Trademarks of Bourgault Industries Ltd. and used with permission.
Bourgault MRB® III & 3720 Coulter Drill
BTT Part: 500-200-1000
Replaces OEM Part #: 2085-04
Disk Type: Flat Coulter Single Bevel
Dimensions: 20-1/2″ x 5mm
Pilot Hole Size: 3.660″
# of Bolt Holes: 4 Beveled
Bourgault MRB© ID, 3820 Coulter Drill
BTT Part: 500-200-1015
Replaces OEM Part #: 2085-05
Disk Type: Flat Coulter Single Bevel
Dimensions: 20-1/2″ x 5mm
Pilot Hole Size: 3.660″
# of Bolt Holes: 4
500-200-1025
AMITY / CONCORD
Replaces OEM Part #: 34354
Disk Type: Flat Coulter
Dimensions: 18″ x 5mm
Pilot Hole Size: 3-5/8″
# of Bolt Holes: 4
500-200-1005
CNH
Models: Case IH 500, 500T, NH P2080 & NH P2085
Replaces OEM Part #: 87488385
Disk Type: Flat Coulter
Dimensions: 18″ x 5mm
Pilot Hole Size: 3-1/2″
# of Bolt Holes: 4
517-200-1020
CNH
Models: CIH, DMI: 530C, 730C / CNH: 870 & 875 / Salford: I-5100 & 5200
Replaces OEM Part #: 87457566
Disk Type: Plain Concave
Dimensions: 24-3/4″ x 6-1/2mm
Pilot Hole Size: 4″
# of Bolt Holes: 5
517-200-1010
DEGELMAN
Original Manufacturer’s Part
Models: Degelman Pro-Till
Replaces OEM Part #: 143550
Disk Type: Plain Concave
Dimensions: 18″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4

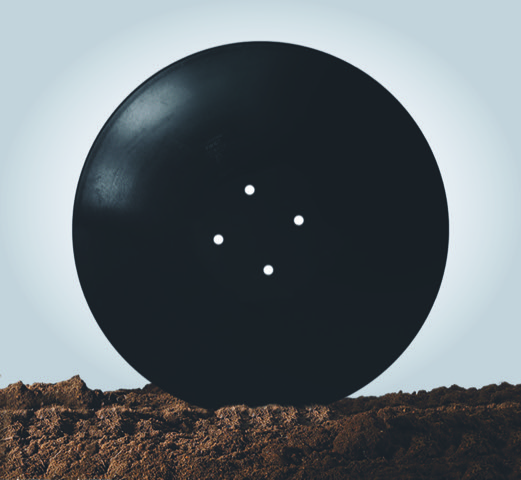

517-200-1005
DEGELMAN
Original Manufacturer’s Part
Models: Degelman Pro-Till
Replaces OEM Part #: 143556
Disk Type: Plain Concave
Dimensions: 20″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
517-200-1025
DEGELMAN
Original Manufacturer’s Part
Models: Degelman Pro-Till
Replaces OEM Part #: 143562
Disk Type: Plain Concave
Dimensions: 22″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
522-200-1010
DEGELMAN
Original Manufacturer’s Part
Models: Degelman Pro-Till
Replaces OEM Part #: 143557
Disk Type: U Notch Concave
Dimensions: 20″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
522-200-1030
DEGELMAN
Original Manufacturer’s Part
Models: Degelman Pro-Till
Replaces OEM Part #: 143563
Disk Type: U Notch Concave
Dimensions: 22″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
522-200-1020
DEGELMAN
Original Manufacturer’s Part
Models: Degelman Pro-Till
Replaces OEM Part #: 143553
Disk Type: Double V Notch Concave
Dimensions: 20″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
522-200-1025
DEGELMAN
Original Manufacturer’s Part
Models: Degelman Pro-Till
Replaces OEM Part #: 143566
Disk Type: Double V Notch Concave
Dimensions: 22″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
510-200-1000
GREAT PLAINS
Models: Great Plains Turbo Chopper, Turbo-Max, Turbo Till & Turbo Till II
Replaces OEM Part #: 820-011C
Disk Type: 20 Wave RT Coulter
Dimensions: 20-1/2″ x 6-1/2mm
Pilot Hole Size: 1-3/4″ Round
# of Bolt Holes: N/A
511-200-1000
GREAT PLAINS
Models: Vantage I Fertilizer Coulter, Zone Coulter & HD Utility Coulter
Replaces OEM Part #: 820-215C
Disk Type: 20 Wave RT Coulter
Dimensions: 18″ x 5mm
Pilot Hole Size: 4″
# of Bolt Holes: 4
500-200-1010
JOHN DEERE
Models: JD 750, 752, 1560, 1590, 1690, 1850, 1860, 1890, 1890 CCS, 1895, 1990 & 1835 SFP Air Hoe, N500, N500F & H500F
Replaces OEM Part #: N283804
Disk Type: Flat Coulter
Dimensions: 18″ x 5mm
Pilot Hole Size: 3″
# of Bolt Holes: 4
517-200-1030
JOHN DEERE / NORWOOD
Models: JD 2680H, Norwood Kwik-Till
Replaces OEM Part #: JD NS90340003, NW 18199A & 19028A
Disk Type: Plain Concave Flat Center
Dimensions: 20″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
522-200-1040
JOHN DEERE / NORWOOD
Models: JD 2680H, Norwood Kwik-Till
Replaces OEM Part #: JD NS90340002, NW 18354A
Disk Type: Notched Concave Flat Centre
Dimensions: 20″ x 6-1/2mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
522-200-1000
LEMKEN
Models: Heliodor 8
Replaces OEM Part #: 3490471
Disk Type: Notched Concave
Dimensions: 18″ x 5mm
Pilot Hole Size: N/A
# of Bolt Holes: 6
522-200-1005
LEMKEN
Models: Rubin 9
Replaces OEM Part #: 3490467
Disk Type: Notched Concave
Dimensions: 24-5/8″ x 6mm
Pilot Hole Size: N/A
# of Bolt Holes: 5
522-200-1035
LEMKEN
Models: Heliodor 9
Replaces OEM Part #: 34910027
Disk Type: Notched Concave
Dimensions: 20″ x 5mm
Pilot Hole Size: N/A
# of Bolt Holes: 4
500-200-1020
PILLAR
Models: DH Series
Replaces OEM Part #: 206-007
Disk Type: Flat Coulter
Dimensions: 18″ x 5mm
Pilot Hole Size: 3-5/8″
# of Bolt Holes: 4
505-200-1000
SALFORD
Models: Salford I-1100 & I-1200
Replaces OEM Part #: 10010764 & CT512008
Disk Type: 8 Wave Coulter
Dimensions: 20″ x 4-1/2mm
Pilot Hole Size: 4″
# of Bolt Holes: 4
505-200-1005
SALFORD
Models: Salford I-1100 & I-1200
Replaces OEM Part #: 10010766 & CT512013
Disk Type: 13 Wave Coulter
Dimensions: 20″ x 4-1/2mm
Pilot Hole Size: 4″
# of Bolt Holes: 4
505-200-1010
SALFORD
Models: Salford I-2100, I-2200 (all), I-4100 (last 2 rows), I-4200 (all but front row)
OEM Part No: 10010768 & CT512208
Disk Type: 8 Wave Coulter
Dimensions: 21-3/4″ x 5mm
Pilot Hole Size: 4″
# of Bolt Holes: 5
505-200-1015
SALFORD
Models: Salford I-2100, I-2200 (all), I-4100 (back 2 rows) & I-4200 (all but front row)
Replaces OEM Part #: CT512213 & 10010769
Disk Type: 13 Wave Coulter
Dimensions: 22-3/4″ x 5mm
Pilot Hole Size: 4″
# of Bolt Holes: 5
517-200-1015
SALFORD & SUNFLOWER
Models: Salford I-4100 (first 2 rows), I-4200 (front row) & I-5100 (all rows), Sunflower 4410, 4411, 4412, 4510, 4511 & 4530
Replaces OEM Part #: CT512250 & 10010771
Disk Type: Plain Concave
Dimensions: 22-1/4″ x 5mm
Pilot Hole Size: 4″
# of Bolt Holes: 5
517-200-1017
SALFORD & SUNFLOWER
Models: Salford I-4100 (first 2 rows), I-4200 (front row) & I-5100 (all rows), Sunflower 4410, 4411, 4412, 4510, 4511 & 4530
Replaces OEM Part #: CT512250 & 10010771
Disk Type: Plain Concave
Dimensions: 22-1/4″ x 6-1/2mm
Pilot Hole Size: 4″
# of Bolt Holes: 5
517-200-1020
SALFORD
Models: Salford I-5100 & 5200, CIH/DMI: 530C & 730C, CNH: 870 & 875
Replaces OEM Part #: CT503059 & 10010727
Disk Type: Plain Concave
Dimensions: 24-3/4″ x 6-1/2mm
Pilot Hole Size: 4″
# of Bolt Holes: 5

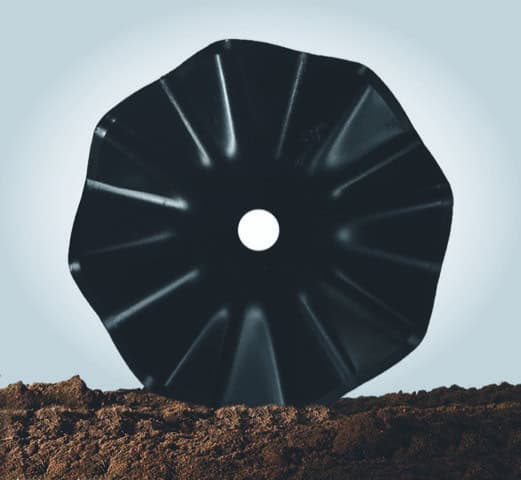

505-200-1020
SUMMERS
Models: Summers Super Coulter & Coulter Chisel
Replaces OEM Part #: 8J1020
Disk Type: 8 Wave Coulter
Dimensions: 20″ x 6-1/2mm
Pilot Hole Size: 2″ Round
# of Bolt Holes: N/A
505-200-1025
SUMMERS
Models: Summers Super Coulter & Coulter Chisel
Replaces OEM Part #: 8J1021N
Disk Type: 8 Wave Notch Coulter
Dimensions: 22-1/2″ x 6-1/2mm
Pilot Hole Size: 2″ Round
# of Bolt Holes: N/A
515-200-1000
SUMMERS
Models: Summers DK Series Disk
Replaces OEM Part #: 8K5026
Disk Type: Plain Concave
Dimensions: 26-1/4″ x 6-1/2mm
Pilot Hole Size: 2″ Round
# of Bolt Holes: N/A
521-200-1000
SUMMERS
Models: Summers DT Series Disk
Replaces OEM Part #: 8K5025N
Disk Type: Notched Concave
Dimensions: 25″ x 8mm
Pilot Hole Size: 2″ Round
# of Bolt Holes: N/A
500-200-1030
YETTER / AGPRO
Model: Yetter & AgPro
Replaces OEM Part #: Yetter 2571-169
Disk Type: Flat Coulter
Dimensions: 18″ x 4-1/2mm
Pilot Hole Size: 3-15/16″ Round
# of Bolt Holes: 4
70 YEARS OF RESEARCH & INNOVATION
Forges de Niaux has over 70 years of disk blade manufacturing experience and has been on the leading edge of many innovative ideas. With generations of experience under their belt, the latest line of disk blades, the Niaux 200, were released. These disk blades are made from high quality steel and a new heat treatment process.
Forges de Niaux is the only manufacturer in the world to offer disk blades with hardness levels up to 58 HRC. These disk blades offer 3 zones of hardness. The lowest level of hardness is found in the center core of the disk, where it is mounted, providing flexibility for shock absorption. Increased durability comes from the transitional zone while the outer edge offers the highest level of hardness providing 20 to 40% longer wear.
