SIDEBAND REPLACEABLE TIP

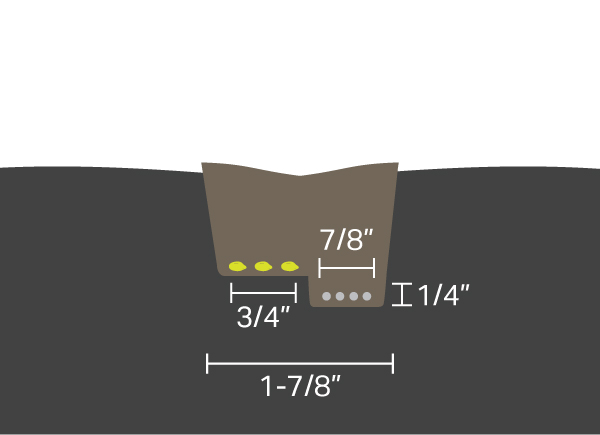

Seed Placement: The seed is placed in a 3/4” (19mm) band onto a firm seedbed.
Fertilizer Placement: Starter fertilizer is placed to the side (right or left) on a slightly lower shelf than the seed. In less-than-ideal conditions, mixing between seed and fertilizer may occur.
Packer Recommendation: 4-1/2” (114mm) round or 5″ (127mm) U and VU packers. Do not recommend the 4-1/2″ V packer.
ALL WINGS ON SIDEBAND OPENERS MUST BE POINTING INWARD TO THE CENTER OF THE SEEDING UNIT TO PREVENT PLUGGING WHEN TURNING.
Customer should order half left and half right wing tips. 612-TIP-0211 (left wing) & 612-TIP-0212 (right wing).
Sideband assemblies that include this tip:
- Bourgault 680-ASY-0211/0212
Drawing for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.
