CARBIDE TIP

1/2″ (12.7 mm) with carbide insert on the nose. Not recommended in highly abrasive conditions.

CHROME TIP

3/4” (19 mm) tip. Not recommended in highly abrasive conditions.

CARBIDE TIP – $0.24 PER ACRE*

3/4” (19 mm) tip with carbide insert on the nose.

*Calculations based on 60 foot drill with 10 inch spacing at an average of 15,000 acres of use. The cost of 24 cents per acre is based on average wear rates. Results will vary depending on several factors including soil type, soil moisture, ground speed, depth and more. Price shown in Canadian dollars.

CARBIDE TIP

3/4” (19 mm) tip with extra long carbide on the nose for highly abrasive conditions.

CARBIDE TIP

3/4” (19 mm) tip with extra long carbide on the nose and sides for highly abrasive conditions. The same as 200-TIP-0802 but with the addition of the side carbide inserts.

VERTICAL CARBIDE TIP

3/4” (19 mm) vertical tip with extra long carbide on the nose for highly abrasive conditions.

VERTICAL CARBIDE TIP

1” (25 mm) vertical tip with double carbide insert. Recommended for rocky and highly abrasive conditions.

CARBIDE TIP SPREAD

2” (50 mm) tip with carbide insert on the nose to fracture the ground. Carbide inserts on the underside of the wings to maintain a sharp cutting edge.

CHROME SPREAD TIP

3” (76 mm) tip. Not recommended in highly abrasive conditions.

CARBIDE SPREAD TIP

3” (76 mm) tip with carbide insert on the nose and hard facing on the underside of the wings.

CARBIDE SPREAD TIP

3” (76 mm) tip with carbide insert on the nose to fracture the ground. Carbide inserts on the underside of the wings to maintain a sharp cutting edge.

CARBIDE SPREAD TIP

4” (101 mm) tip with carbide insert on the nose to fracture the ground. Carbide inserts on the underside of the wings to maintain a sharp cutting edge.

CARBIDE SPREAD TIP

3/4” (19 mm) long-wearing single shoot tip with extra long carbide on the nose for high abrasive conditions. Used for seeding or fertilizing (not for double shooting).

Fits VOS (Versatile Opener System) Find out more.

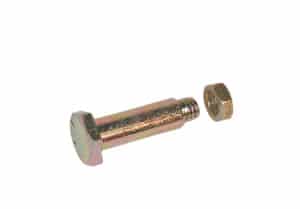

BOLT & NUT COMBO

This bolt and nut combination is used to secure tips with product numbers beginning in 200, 610, 612 & 614.

It is important not to over tighten the bolt when installing the tips. The bolt has a strip of thread lock applied to the threads, so it needs only to be turned in by hand until the shoulder of the bolt makes contact with the nut.

Recommended to torque to 84 in/lbs or 7 ft/lbs (9.5Nm). Over torquing with a power drill will result in difficulty when removing.

It is recommended the bolt and nut be changed when changing the tip. The nut, 200-NUT-3101, and bolt, 200-BLT-3102, can be ordered separately.

CARBIDE TIP

Cast chrome tip with carbide inserts on the nose and the wing for excellent penetration and wear resistance.

The seed is placed in a 3/4” (19 mm) band onto a firm, unfractured seedbed. Fertilizer is delivered in a band off to the side (right or left) on the same level as the seedbed.

Fits VOS (Versatile Opener System). Learn more…

Also available as a single shoot opener to fit Seed Hawk Inc. Learn more…

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

CHROME TIP

Cast chrome tip with carbide inserts on the nose and the wing for excellent penetration and wear resistance.

The seed is placed in a 3/4” (19 mm) band onto a firm, unfractured seedbed. Fertilizer is delivered in a band off to the side (right or left) on the same level as the seedbed. Learn more…

CARBIDE TIP

Cast chrome tip with carbide inserts on the nose and the wing for excellent penetration and wear resistance. A carbide wafer on the bottom of the fertilizer trough prevents bottom wear and keeps the fertilizer trench open. A carbide wafer under the wing seals the fertilizer trench, and firms the seed bed prior to seed placement.

The seed is placed in a 1-1/2″ (38 mm) band 3/4″ (19 mm)above and to the side of the fertilizer row after the fertilizer trench has been sealed and seed bed has been firmed up. Learn more…

BOLT & NUT COMBO

This bolt and nut combination is used to secure tips with product numbers beginning in 200, 610, 612 & 614.

It is important not to over tighten the bolt when installing the tips. The bolt has a strip of thread lock applied to the threads, so it needs only to be turned in by hand until the shoulder of the bolt makes contact with the nut.

Recommended to torque to 84 in/lbs or 7 ft/lbs (9.5Nm). Over torquing with a power drill will result in difficulty when removing.

It is recommended the bolt and nut be changed when changing the tip. The nut, 200-NUT-3101, and bolt, 200-BLT-3102, can be ordered separately.

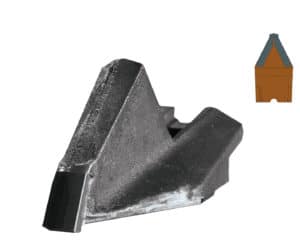

CARBIDE TIP

3-1/2” (89 mm) cast chrome tip with carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside of the wing maintain a sharp cutting edge.

Single shoot Paired Row tip 688-ASY-3500 with no vertical separation used on Seed Hawk Inc.

Paired Row liquid option only tip. This double shoot tip has no vertical seed/fertilizer separation.

Fits VOS (Versatile Opener System). Learn more…

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

CARBIDE TIP

4″ (102 mm) Paired Row tip with extra long carbide on the nose and narrow carbide on the cutting edges of the wings for excellent penetration. Two carbide pieces on the bottom firm the trench for seed placement.

This tip also fits any holders that use the Paired Row tip 610-TIP-4041.

Fits VOS (Versatile Opener System). Learn more…

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

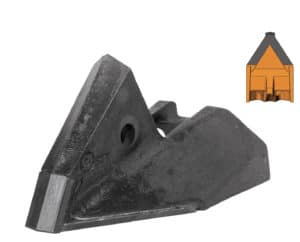

CARBIDE TIP

4” (102 mm) cast chrome tip with carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside of the wing to maintain a sharp cutting edge.

This Paired Row liquid or granular double shoot tip has no vertical seed/fertilizer separation. Learn more…

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

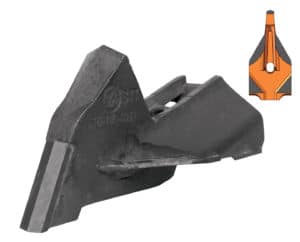

CARBIDE TIP

4” (102 mm) cast chrome tip with carbide insert on the nose for excellent penetration and wear resistance. Carbide inserts on the underside of the wing maintain a sharp cutting edge. Carbide inserts at the back of the underside of the wings seals up fertilizer trench prior to seed placement.

This tip has 3/4” (19 mm) vertical separation of liquid, granular, or NH3 fertilizer.

610-TIP-4082 has additional carbide along the sides of the fertilizer trench, below the wings, to provide extra-wear life.

Fits VOS (Versatile Opener System). Learn more…

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

This bolt and nut combination is used to secure tips with product numbers beggining in 200, 610, 612 & 614. It is important not to over tighten the bolt when installing the tips. The bolt has a strip of thread lock applied to the threads, so it needs only to be turned in by hand until the shoulder of the bolt makes contact with the nut.

The nut, 200-NUT-3101, and bolt, 200-BLT-3102, can be ordered separately.

Over torquing with a power drill will result in difficulty when removing. Recommended to torque to 84 in/lbs or 7 ft/lbs.

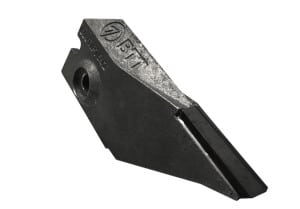

CHROME TIP

3/4” (19 mm) chrome tip. This tip fits 410, 599 & 600 Series knife holders.

CARBIDE TIP

3/4” (19 mm) chrome tip with carbide on the nose. This tip fits 410, 599 & 600 Series knife holders.

CARBIDE TIP

3/4” (19 mm) chrome tip with extra long carbide on the nose. This tip fits 410, 599 & 600 Series knife holders.

CARBIDE TIP & WING

3/4” (19 mm) carbide tip and wing for liquid application. This allows vertical and horizontal separation when double-shooting with liquid.

Only used with 600-KNH-7562.

CARBIDE TIP

3” (76 mm) chrome tip with extra long carbide on the nose to fracture the ground. Carbide pieces on the underside of the wings to maintain a sharp cutting edge. This tip fits  410, 599 & 600 Series knife holders.
