Fertilizer Type:

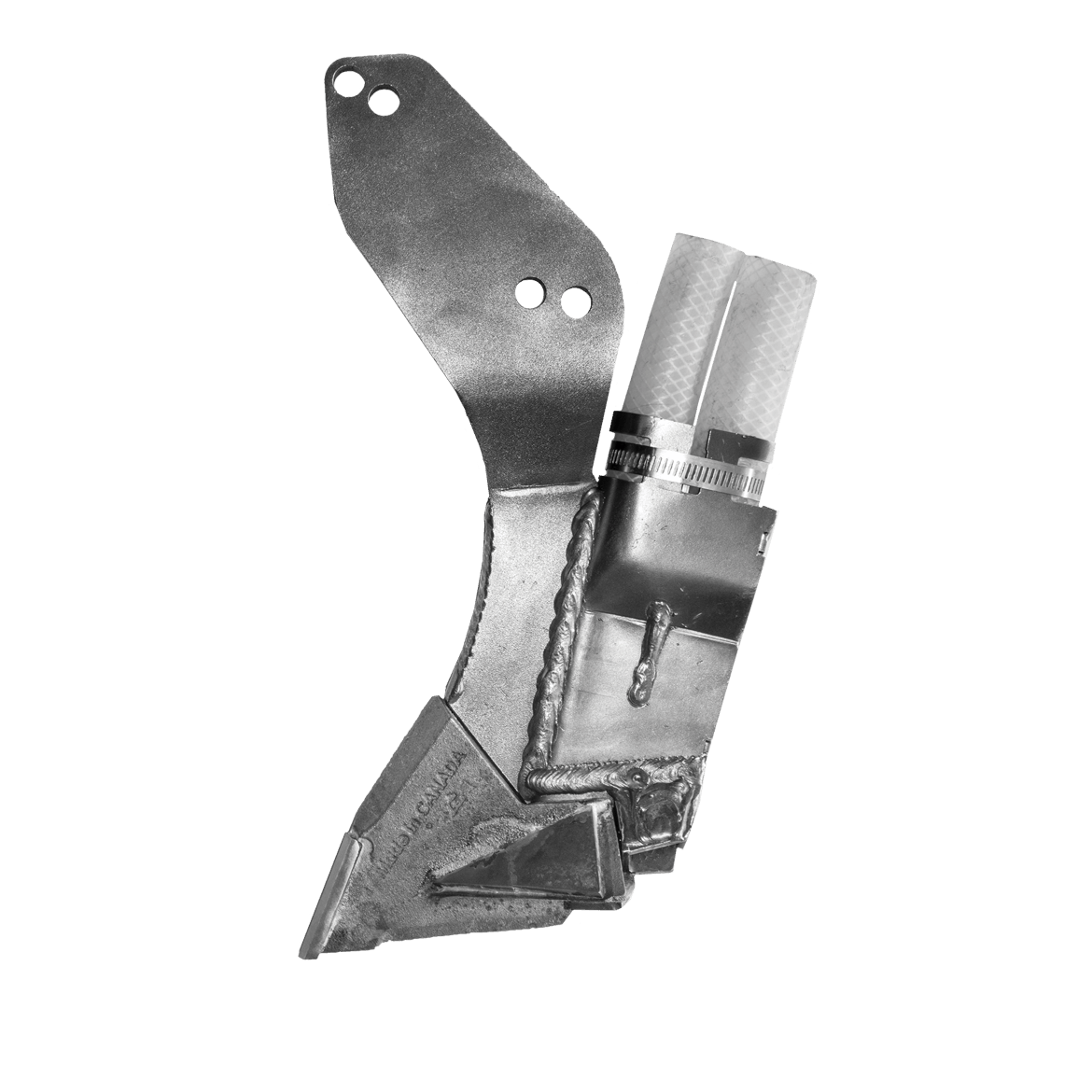

Granular N (684-ASY-2711G & 684-ASY-2712G)
Granular N + Liquid N (684-ASY-2711GP & 684-ASY-2712GP)
Liquid N (684-ASY-2711L & 684-ASY-2712L)
Liquid N + Liquid Phos (684-ASY-2711LP & 684-ASY-2712LP)

Seed Placement: The seed is placed 3/4” (19mm) above and to the side of the fertilizer row, the tip’s wing seals the fertilizer trench and firms up the seedbed. The GP & LP openers deliver liquid phos on top of the seed.

Fertilizer Placement: Fertilizer is placed in the center 3/4” (19mm) below the seedbed. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to precautions & risk factors.

Tip Options: Replaceable cast chrome tip with extra long carbide inserts on the nose of the tip for excellent penetration and wear resistance. Top face of wing is covered with two carbide inserts and the heel of the fertilizer trench has a u-shaped carbide wafer, providing excellent wear resistance. Assemblies include the tip.

Packer Recommendation: 3″ (76mm) or wider. V-Packer not recommended with these openers.

Overview: Hard facing is placed on critical wear points to ensure a long-lasting holder and proper seed placement. The streamlined holder design reduces plugging and allows for better trash clearance.

Notes: Installation bolts sold separately. Use 1/2″ x 2″ Grade 8 Hex Head bolts. Use bottom holes for standard installation (pictured red), use top holes to add 3° more pitch (pictured yellow).

All wings on Side Band openers must be pointing inward to the center of the seeding unit to prevent plugging when turning. Customers should order half left and half right wing openers.

For a more detailed view check out the expanded drawing.
