600-ASY-7523

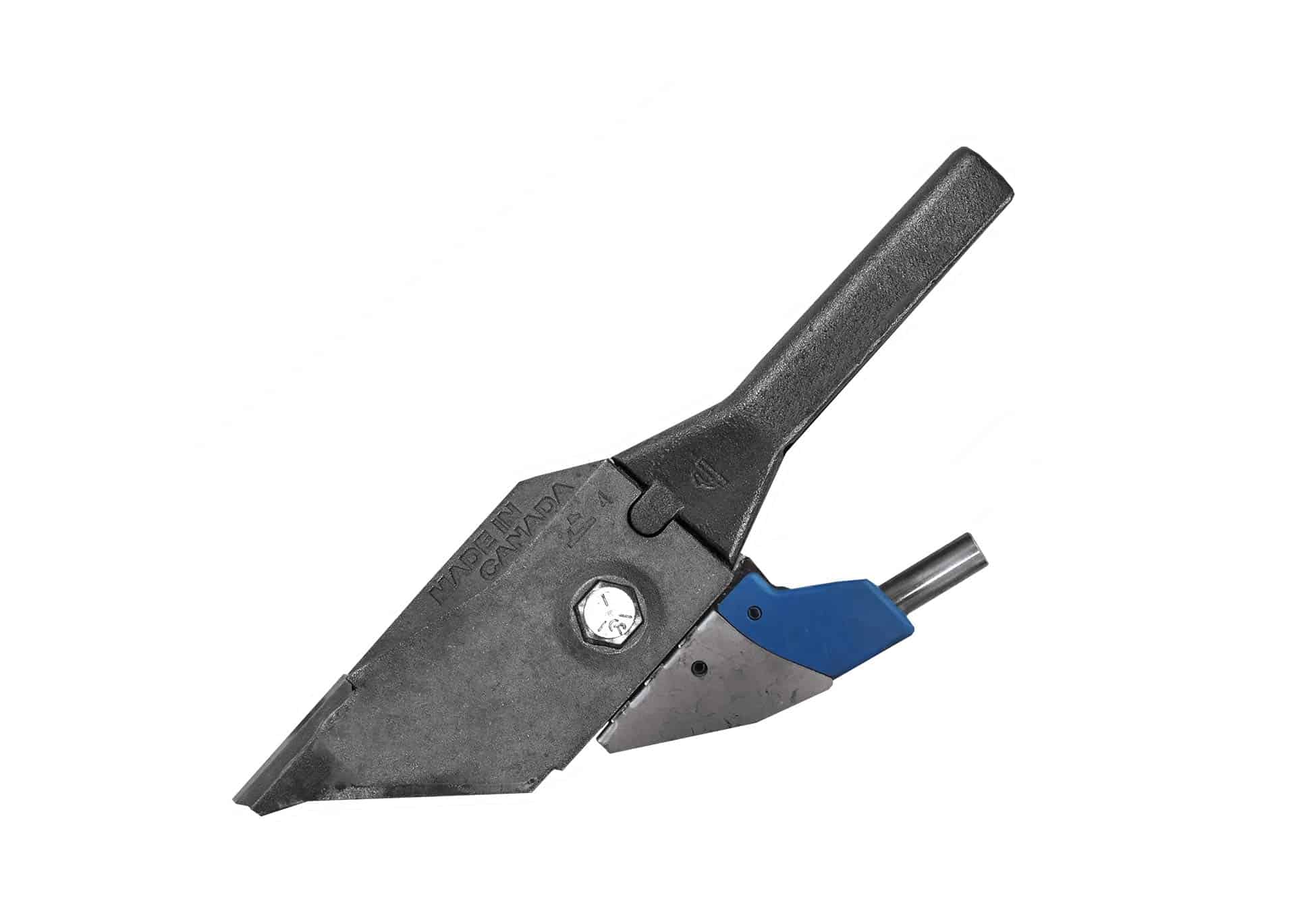

FERTILIZER KNIFE

Fits: 43°, 47° and 50° C-Shank
For 43° shank use a 7° wedge.

Fertilizer Type: Non-Freeze NH3

Tube Size: 1/2” (12mm) O.D.

Bolt Hole Spacing: 1-3/4” to 2-1/2” (44 – 64mm) slotted bolt hole spacing providing the ability to fit many different makes and models.

Tip Options:
3/4” (19mm) tips:

  • 600-TIP-7500 (cast chrome)
  • 600-TIP-7501 (regular carbide)
  • 600-TIP-7502 (extra-long nose carbide)
3” (76mm) tip:
  • 600-TIP-3011 (full carbide)

Tips sold separately.

Overview: NH3 is delivered through a nylon insert, insulating the knife from the NH3. This prevents moist soil from freezing up and building up on the knife, keeping it narrow to reduce disturbance with minimal gassing off. Not recommended for rocky conditions.

Notes: Installation bolts sold separately. Use 1/2” Grade 8 Hex Head bolts.
