QUICK CHANGE SEED BOOT SYSTEM

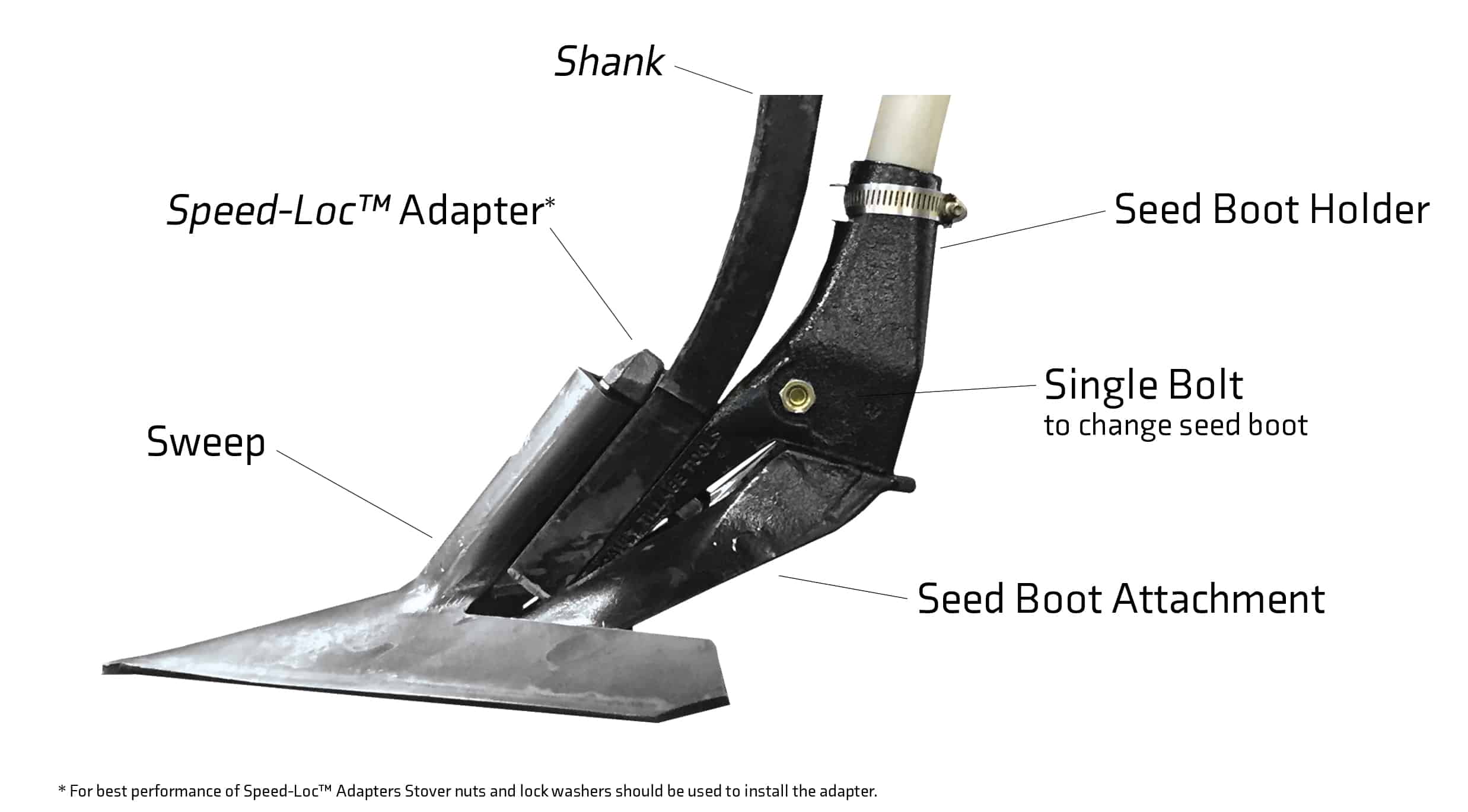

The quick change seed boot system consists of two parts: the seed boot holder which bolts on to the back of the shank and the seed boot attachment which fits into the holder and is secured with a bolt and nut. There are seven different interchangeable attachments to choose from, each giving a different seed spread pattern. This system allows you to match your seed spread to the width of opener you are using. It is perfect for producers who want to switch back and forth from a wide seed spread behind a sweep to a narrow seed band behind a knife.

NOTE:

All holders on this page only accept
1-1/8” (29 mm) O.D. hose.

Bushing 300-BSH-1200 is required for 1-1/4” (32 mm) OD hose.

A 3/8″ (9mm) screw 911-SCR-1038 is also available to secure the air hose into the top of the bushing.

A self-tapping screw 911-SCR-1051 should be used to hold the air hose or the bushing into the seed boot holder.

SEED BOOT HOLDER
300-HLD-4700

This holder has 1-3/4″ (45 mm) bolt hole spacing. The bolt hole section is designed flat to fit the Bourgault and Ezee-On 47° shanks. Use a hose clamp to secure the air hose into the seed boot holder.

300-HLD-4710

This holder has 1-3/4″ (45 mm) bolt hole spacing. The bolt hole section is curved to fit all 47° shanks except the Bourgault and Ezee-On. Use self tapping screen 911-SCR-1051 to secure the air hose into the seed boot holder.

300-HLD-5000

This holder has 2-1/4″ (57 mm) bolt hole spacing. The bolt hole section is flat and has two sets of holes. The top set of holes should be used in almost all cases when mounting this holder to the shank. It fits on the Bourgault chisel plow shanks as well as the LH755 shank used on the Morris Magnum III and the Morris Concept 2000. Use self tapping screen 911-SCR-1051 to secure the air hose into the seed boot holder.

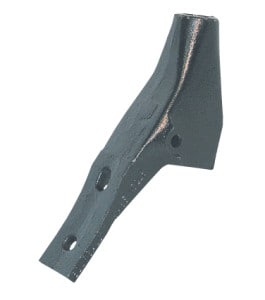

300-HLD-5010

This holder has 2-1/4″ (57 mm) bolt hole spacing. The bolt hole section is curved to fit any chisel plow shank except the Bourgault and the Morris LH755 shank. Use a hose clamp to secure the air hose into the seed boot holder.

SEED BOOT ATTACHMENTS
300-atm-1000

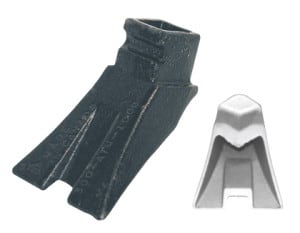

300-ATM-1000

This spreader attachment will distribute the seed evenly in a 3″ to 4″ (76 mm to 102 mm) band. Seed spread may vary depending on sweep size, soil type and fan speed.

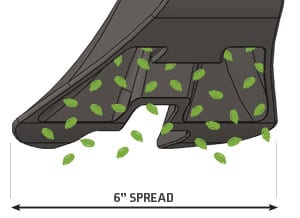

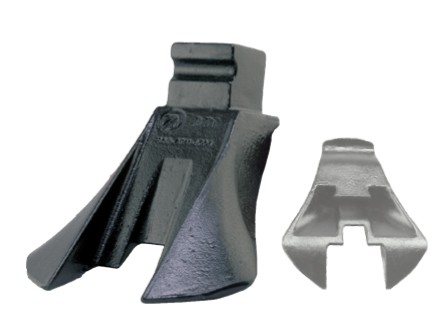

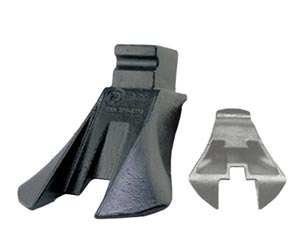

300-ATM-1006

This spreader attachment will distribute the seed evenly in a 6″ (152 mm) row. Seed spread may vary depending on sweep size, soil type and fan speed. Works well for organic operations because of the wide seed spread.

300-atm-1010

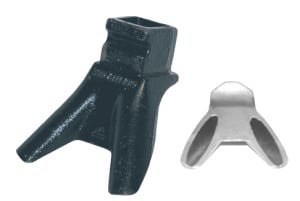

300-ATM-1010

This splitter attachment will place the seed into two distinct rows approximately 6″ (152 mm) apart. Seed spread may vary depending on sweep size, soil type and fan speed.

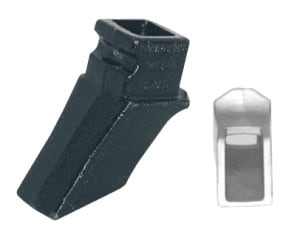

300-atm-1020
300-ATM-1020

This straight attachment will spread the seed approximately 2-1/2″ (63 mm). It works well with the quick change spoons, spikes or any size of sweep.

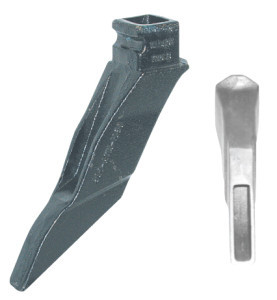

300-atm-1031
300-ATM-1031

This knife attachment will place the seed in a very narrow band. It is designed to be used behind:

  • 200-VRT-1000
  • 410-VRT- 1000
  • 410-KNF-0800
  • 410‑KNF‑0801
300-atm-1035

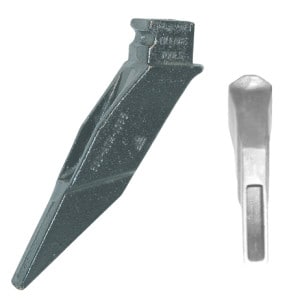

300-ATM-1035

This knife attachment will place the seed in a very narrow band. It is designed to be used behind:

  • 200‑KNF-0810
  • 200-KNF- 0811
  • 200-KNF-0813
  • 200-KNH-4000
300-atm-1036

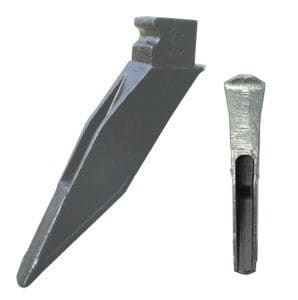

300-ATM-1036

This knife attachment will place the seed in a band. There is hard facing on the side and the slot is wider than the 300-ATM-1035. It is designed to be used behind the 200‑KNF‑0815. Designed for use in Europe.

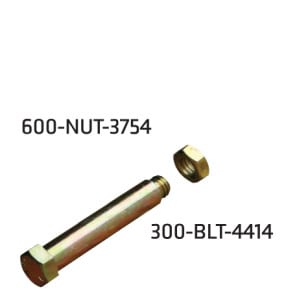

300-BNC-4414

This bolt and nut secure the quick change seed boot attachments into the holders.

SQUARE TUBE SEED BOOT
300-sqr-1500

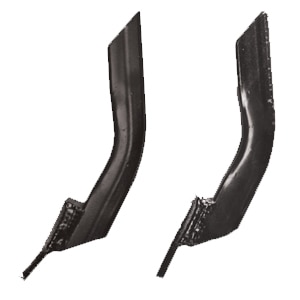

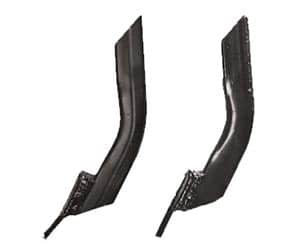

300-SQR-1500 / 1505

Both square tube seed boots have a slotted top hole to fit 1-3/4” to 2-1/4” (45 to 57 mm) bolt spacing. It accepts 1-1/4” (32 mm) O.D. air hose.

The 300-SQR-1500 seed boot is designed to fit curved bottom shanks.

The 300-SQR-1505 seed boot is designed to fit flat bottom shanks.
