ACCESSORIES

100-WDG-0700

This 7° urethane wedge is designed to correct the pitch of the 100-QCA-5010 and the 200-QCA-5010 adapters on 43° shanks.

200-bnc-310

200-BNC-3100

This bolt and nut combo is used to secure tips with product numbers beginning in 200, 610, 612 & 614.

DO NOT over tighten the bolt when installing tips. The bolt has a strip of thread lock applied to the threads and needs only to be turned in by hand until the shoulder of the bolt makes contact with the nut. Over torquing with a power drill will result in difficulty when removing. Recommended to torque to 84 in/lbs or 7 ft/lbs.

The nut (200-NUT-3101) and bolt (200-BLT-3102) can be ordered separately.

200-WDG-0206

This 2° urethane wedge has 45 mm to 80 mm bolt hole spacing. It is used to obtain proper sweep pitch on certain shanks.

200-WDG-0506

This 5° urethane wedge has 45 mm to 80 mm bolt hole spacing. It is used to obtain proper sweep pitch on certain shanks.

200-WDG-1000

This 10° urethane wedge has 45 mm to 80 mm bolt hole spacing. It is used to obtain proper sweep pitch on certain shanks.

200-WDG-1006

This 10° urethane wedge has 45 mm to 80 mm bolt hole spacing. It is used to obtain proper sweep pitch on certain shanks.

400-WDG-0300

This 3° urethane wedge is designed to correct the pitch of the 410-QCA-5010 adapter on a 47° chisel plow shank, as well as the 50° bolt-on sweeps.

400-WDG-0700

This 7° urethane wedge is designed to correct the pitch of the 410-QCA-5010 adapter when installing on a 43° shank. It should also be used with the 600 Series knives when installing on a 43° shank.

880-WDG-0300

This cast wedge adapter is designed for our 047, 610 and 612 seeding openers on all John Deere shanks.

880-WDG-0301

This cast wedge adapter is designed for our 047, 610 and 612 seeding openers on all 50° curved bottom shanks.

880-BSH-1000

This bushing is to be used with all VOS tips.

880-BSH-2000

This bushing is to be used on John Deere split shanks with bolt ons & QCAs.

200-QAS-4711

This sub-plate is used in conjunction with the 200-QCA-4710 adapter on the Kongskilde VFM shank.

047-ACC-1000

Helps direct the flow of seed in a focused row behind the 047-ASY-1000, 047-ASY-1005P or 675 Series openers.

047-ACC-1002

Allows you to adapt to any shank with an open bottom hole. Keeps the bottom bolt in place on the John Deere 1820, 1830 & 2400.

047-CAP-1000

This cap is a replacement cap for the 047-ASY-1000 and 047-ASY-1005P.

600-HHA-0750

This stainless steel hose holder mounts on any C-Shank to hold the NH3 hose in place. It is completely height adjustable.

614-ACC-1000

This bushing is necessary when using NH3 with the 614-TIP-2711 & 614-TIP-2712.

650-ACC-1000

This bracket limits the tripping distance of the 650 fertilizer knives on the JD 1870 Conserva-Pac drills. This bracket is to be used with all fertilizer knives excluding the 650-HLD-1000GL & 650-HLD-1000GN knives.

650-ACC-1010

This bracket limits the tripping distance of the 650 fertilizer knives on the JD 1870 Conserva-Pac drills. This bracket is to be used with the 650-HLD-1000GL & 650-HLD-1000GN knives.

880-ORF-0001

This orifice is used to concentrate and direct the flow of liquid fertilizer on the 200-VRT-1061 and 200‑KNF-0863.

680-ACC-0001

This spacer plate is required for the Concord when installing any edge on product.

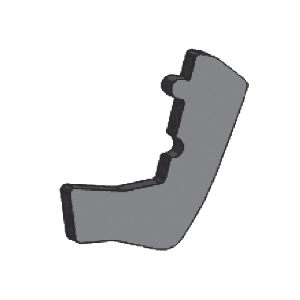

680-ACC-0002

Spacer required when a 680-ASY-4026 is mounted on a Bourgault 3310 & 3320 PHD Drill.

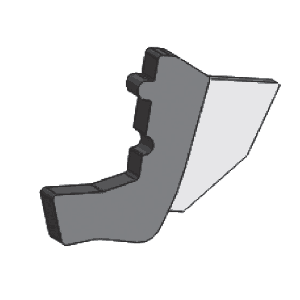

680-ACC-0003

Spacer required when a 680-ASY-4020 is mounted on a Bourgault 3310 & 3320 PHD Drill.

680-ACC-0004

This conversion tab replaces the fertilizer tube on the 680-HLD-2000 so it can be converted to a single shoot opener.

680-ACC-1000

Helps direct the flow of seed in a focused row behind the opener. Use with 680-ASY-1000 openers prior to 2012.

694-ACC-1000

This spacer is required when installing Titan Openers on anything except Concord.

880-ASY-1010

This assembly is required to convert the standard 3/16” (5 mm) O.D. liquid phos tube to 1/4” I.D. Liquid Phos delivery hoses on the 047-ASY-1005P and 680-ASY-1000P.

880-CPL-1010

This barb and compression fitting are used when going from 1/4″ (6 mm) I.D. liquid phos tube to 3/16″ stainless steel liquid phos tubes.

880-CPL-2500

This coupler is used to attach a 1/4” (6 mm) O.D. liquid phos tube. Included with all new liquid phos openers.

880-GRD-1000

This guard is used to protect liquid hose on all side band liquid openers in heavy trash conditions.

880-GRD-1010

This guard is used to protect liquid phos tubes on 047 & 680 liquid phos openers in heavy trash conditions.

880-HCL-0001

This clip eliminates hose movement, as the sharp corners embed into the granular pipe.

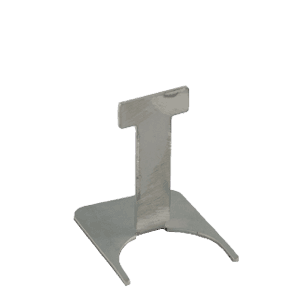

880-HCL-0002

Spacer clip may be required on the rear tube of the following side band openers: 683, 684, 686, 693, 694 where 1-1/8” (29 mm) hose is used.

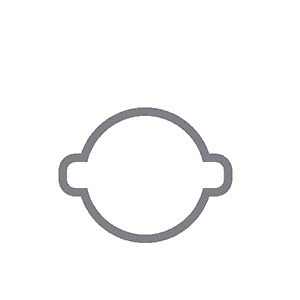

880-HCL-0004

This 3/4″ ear clamp is used to secure the rubber sleeve to the 1/2″ pipe to protect the liquid phos tube.

BUSHINGS

300-BSH-1200

This bushing adapts from a 1-1/8” (28 mm) O.D. air hose up to a 1-1/4” (32 mm) O.D. air hose.

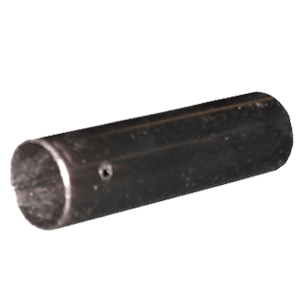

300-BSH-1205

This bushing adapts from 1-1/8” (28 mm) O.D. air hose to 1-1/8” (28 mm) O.D. air hose.

880-BSH-1130

This bushing is needed when you are using 1-1/8” (28 mm) O.D. hose.

880-BSH-1150

This bushing adapts from 1-1/4” (32 mm) O.D. air hose up to a 1-1/2” (38 mm) O.D. air hose.

880-BSH-1170

This bushing adapts 1-1/2″ (38 mm) O.D. hose to 1-1/4″ (32 mm) hose.

880-HCL-0001

This clip eliminates hose movement, as the sharp corners embed into the granular pipe.

SPEED-LOC DRIVERS

100-DRV-1010

This driver should be used for installing the following parts:
200-ASY-7523
200-KNF-0863
200-KNF-7501
200-KNF-7510
200-KNF-7511
200-KNF-7511P
200-KNF-7520
200-KNF-7521
200-KNF-7524
200-KNF-7525
200-KNF-7530
200-KNF-7531
200-KNF-7542
200-KNF-7551
200-KNF-7553

100-DRV-1020

This driver is used when installing the 200-HOE-1700 onto the adapter.

200-DRV-1013

This driver should be used when installing knives with the following tips:
200-TIP-2011
200-TIP-3000
200-TIP-3001
200-TIP-3011
200-TIP-4011

When used on:
200-KNH-4000
200-KNH-4010
200-KNH-4020

200-DRV-1030

This driver should be used when installing the following openers:
200-VRT-1000
200-VRT-1040
410-VRT-1000

It should also be used when installing knives with the following tips:
200-TIP-1011

400-DRV-1000

This driver can be used when installing any of the quick change sweeps and spoons.

400-DRV-1010

This driver should be used when installing these knives and parts:
200-KNF-0800
200-KNF-0801
200-KNF-0810
200-KNF-0811
200-KNF-0813
200-KNF-7560
200-KNH-7551
410-KNF-0800
410-KNF-0801
410-KNF-0824
410-KNF-0825
410-KNF-0826
410-KNF-0830
410-KNF-0831
410-KNF-7540
410-KNF-7551
410-KNF-7553
410-KNF-7560
410-KNH-7524
410-KNH-7526
410-KNH-7540
410-KNH-7551
410-ASY-0823
410-ASY-7523
410-HLD-7500

This driver should be used when installing these tips:
200-TIP-0511
200-TIP-0801
200-TIP-0802
200-TIP-0803
200-TIP-0811

Onto these knives:
200-KNH-4000
200-KNH-4010
200-KNH-4020

SPEED-LOC ACCESSORIES

100-HAM-4000

This 4lb (1.8kg) hammer is ideal for installing all quick change products.

200-REL-1010

This speed-release tool must be used to remove 200 and 410 Series sweeps and openers off the Speed-Loc™ adapters.

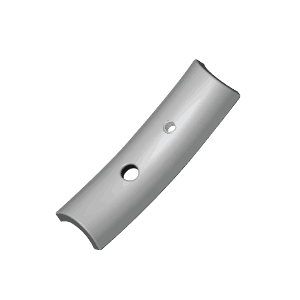

200-QAS-4712

This sub-plate is used in conjunction with the 200-QCA-4710 adapter on an S-tine. S-tines with a single hole can now use the Speed-Loc™ system.

SPEED-LOC REPLACEMENT PARTS

200-SLC-1001

Replacement bushing for all 200 Series adapters. Comes complete with dust seal.

200-SLC-1010

Replacement dust seal for all 200 and 410 Series Speed-Loc™ adapters.

200-SLC-1020

Replacement locking pin for all 200 and 410 Series adapters purchased after Nov 1, 2008.

200-SLC-1030

Replacement spring ball for the 200-QCA-4700 adapters.

200-SLC-1035

Replacement spring ball for the 200-QCA-4710, 200-QCA-5000 and 200-QCA-5010 adapters.

200-SLC-1037

Replacement spring ball for the 200-QCA-5020 adapter.

200-SLC-1038

Replacement spring ball for 200-QCA-5020 adapter for special applications.

200-SLC-1039

Replacement spring ball for 200-QCA-5030 adapters.

410-SLC-1001

Replacement bushing for the 410-QCA-5000, 410-QCA-5010 and 410-QCA-5020. Comes complete with dust seal.

410-SLC-1022

Replacement locking pin for all 410 Series adapters purchased prior to Nov 1/08. Use 200-SLC-1020 if 410 Series adapter was purchased after Nov 1/08.

410-SLC-1030

Replacement spring ball for the 410-QCA-5000, 410-QCA-5010 and 410-QCA-5020.

410-SLC-1050

Complete replacement package for the 410 Series, includes bushing, spring ball, pin and dust seal.
