HORIZONTAL & VERTICAL SEED/FERTILIZER SEPARATION

Titan Opener System Benefits:

• 1/2” wide fertilizer knife for lower disturbance and more precise fertilizer placement.

• Adjustable seed boot provides flexibility to set the depth of the fertilizer from 3/4” to 1-1/2”.

• Three strategic carbide locations for additional wear life and hard facing on key wear points that don’t have carbide.

• Modular design allows for replacement of worn parts instead of the entire opener.

• Adjustable depth based on seed and fertilizer placement needs.

Titan Series Customizer

STEP 1: Choose Your Holder  |  STEP 2: Choose Your Seed Shoe  |  STEP 3: Choose Your Tip

*Drawings for illustration purposes only. All measurements shown are approximate. Results may vary with multiple factors including soil conditions, ground speed, application rates, fan speeds and more. In less than ideal conditions, mixing between seed and fertilizer may occur. For more information please refer to our precautions and risk factors.

STEP 1: CHOOSE YOUR HOLDER

620-HLD-5000

Fits: 47° and 50° C-Shanks

628-HLD-5000

Fits: Morris Maxim Edge On & Bourgault PHD shanks

688-HLD-5000

Fits: Horsch 84° shank

694-HLD-5000

Fits: Case IH ATX 700, NH P2060, Flexi-Coil 5500, Concord Edge On (84° shanks only)

When installing on units other than Concord, the insert 694-ACC-1000 is needed.

STEP 2: CHOOSE YOUR SEED SHOE

620-SSH-1000

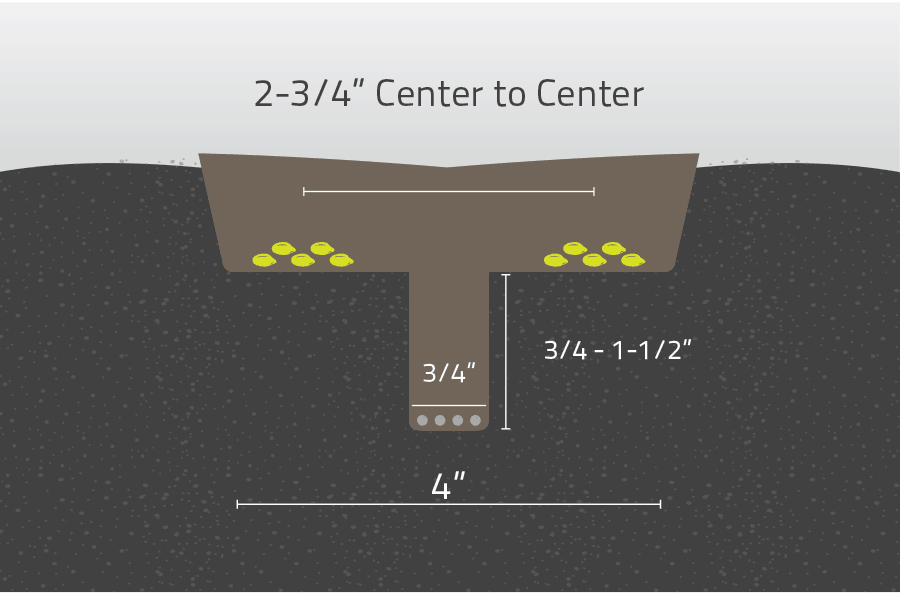

4” outside to outside (2-3/4” center to center) seed spread, placed above the center placed fertilizer trench.

When using Seed Shoes with 620-TIP-0517, you must use the bottom setting on the holder. Fertilizer is placed at 1-1/2″ at this setting.

620-SSH-4000

6” outside to outside (4” center to center) seed spread, placed above the center placed fertilizer trench.

When using Seed Shoes with 620-TIP-0517, you must use the bottom setting on the holder. Fertilizer is placed at 1-1/2″ at this setting.

620-SSH-6000

8” outside to outside (6” center to center) seed spread, placed above the center placed fertilizer trench.

When installing tip use 200-BNC-3100. When using these seed shoes with 620-TIP-0517, you must use the bottom setting on the holder. Fertilizer is placed at 1-1/2″ at this setting.

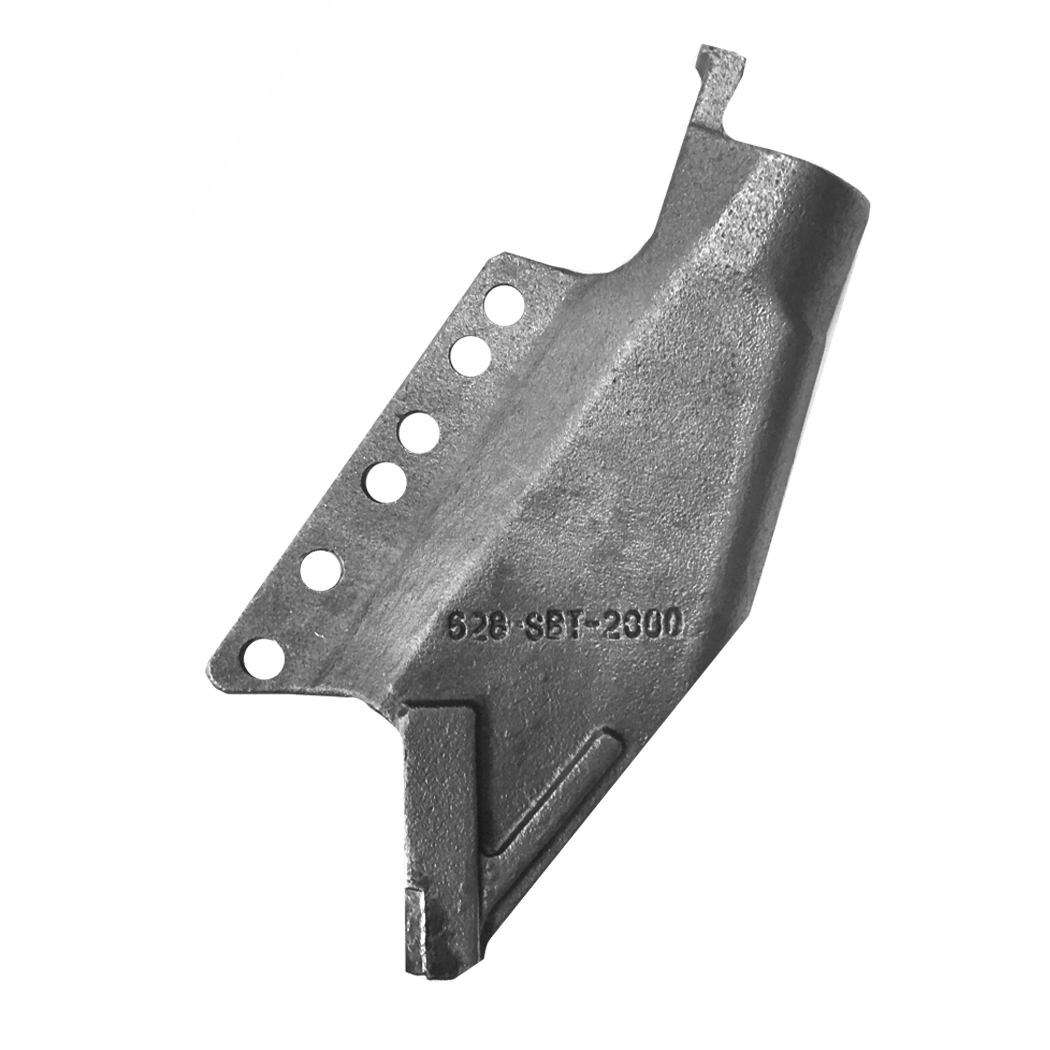

628-SBT-2000

2” wide seed spread, placed above the center placed fertilizer trench.

seed-placement-illustration_titan_1000

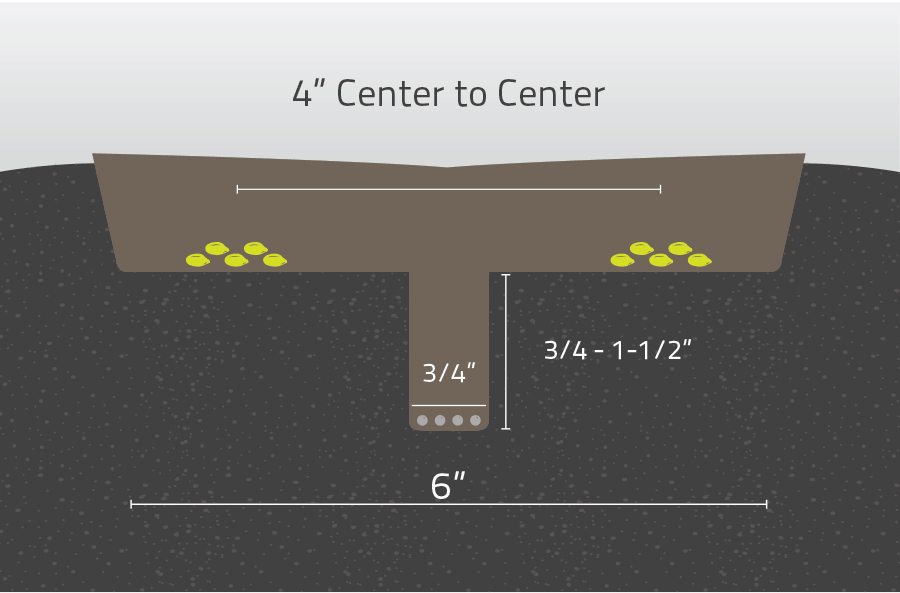

seed-placement-illustration_titan_4000

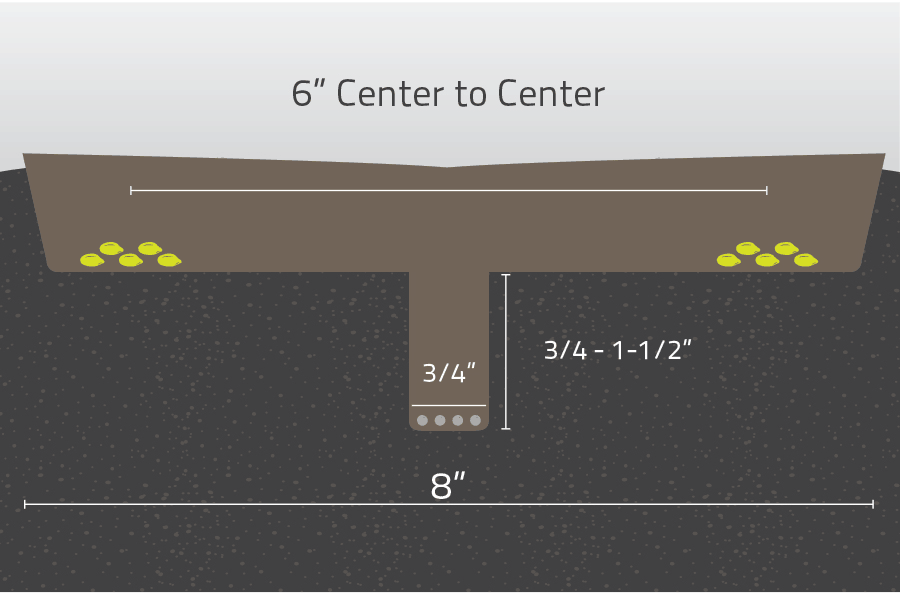

seed-placement-illustration_titan_6000

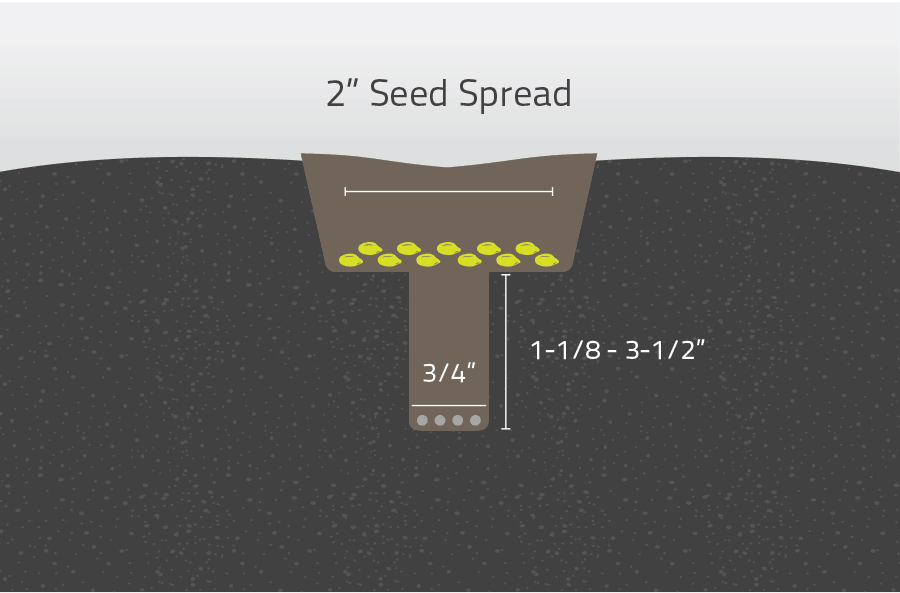

seed-placement-illustration_titan_2000

STEP 3: CHOOSE YOUR TIP

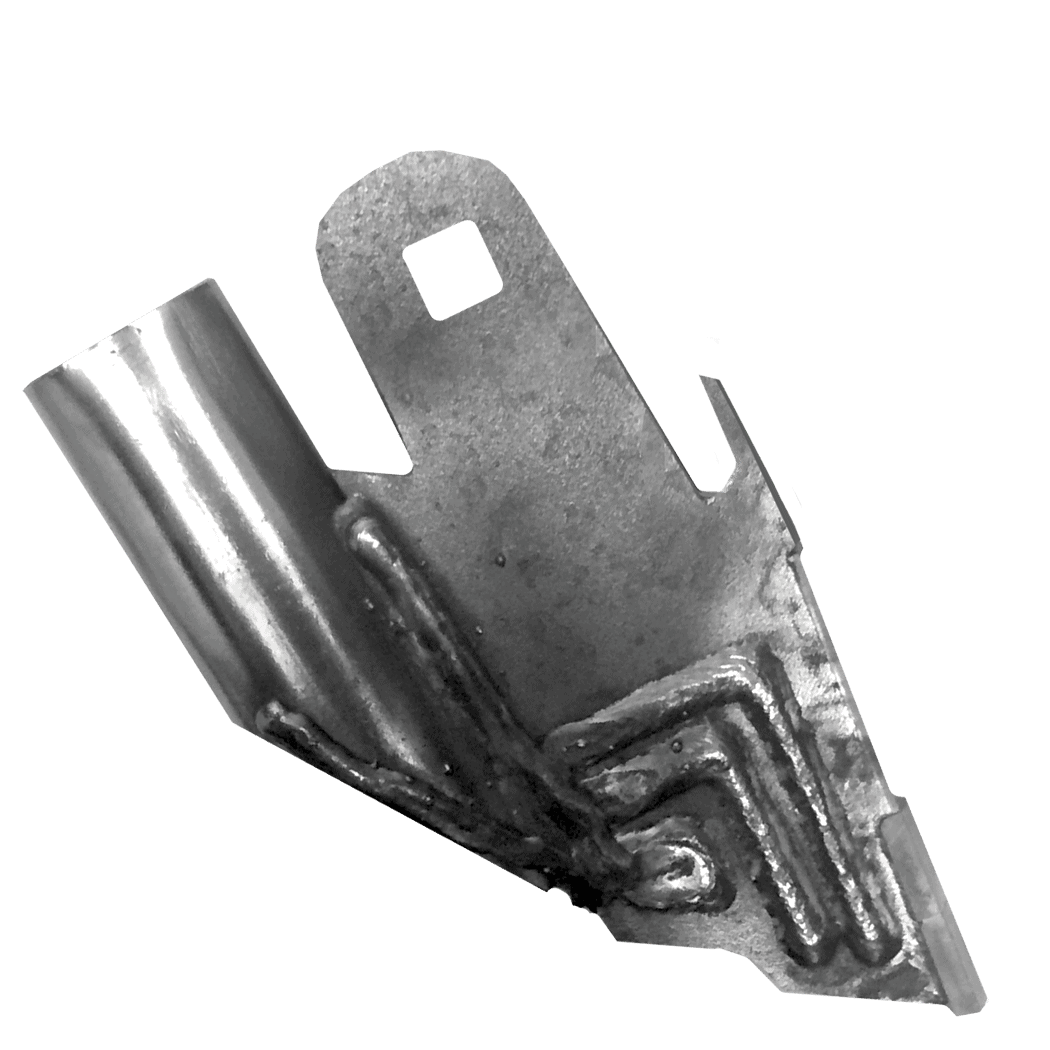

620-TIP-0510

Standard tip for 620, 688 & 694 holders. Carbide inserts are placed on the nose. Hard facing is placed on critical wear points for extended life of the tip. Use bolt and nut combo 620-BNC-3100 (5/16″ x 1-1/2″) to install shoe to holder.

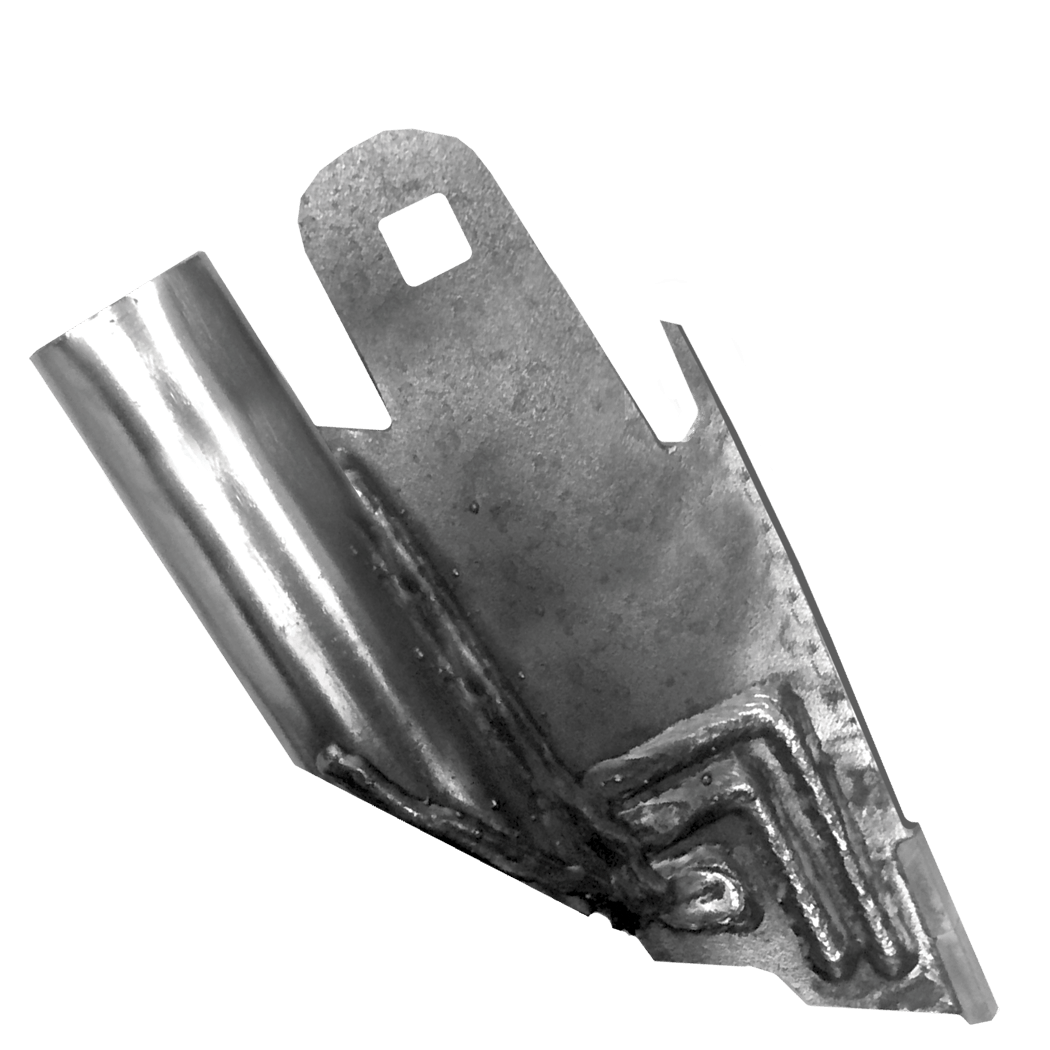

620-TIP-0517

This tip is the same as 620-TIP-0510 but is 3/4″ longer giving you more vertical separation.

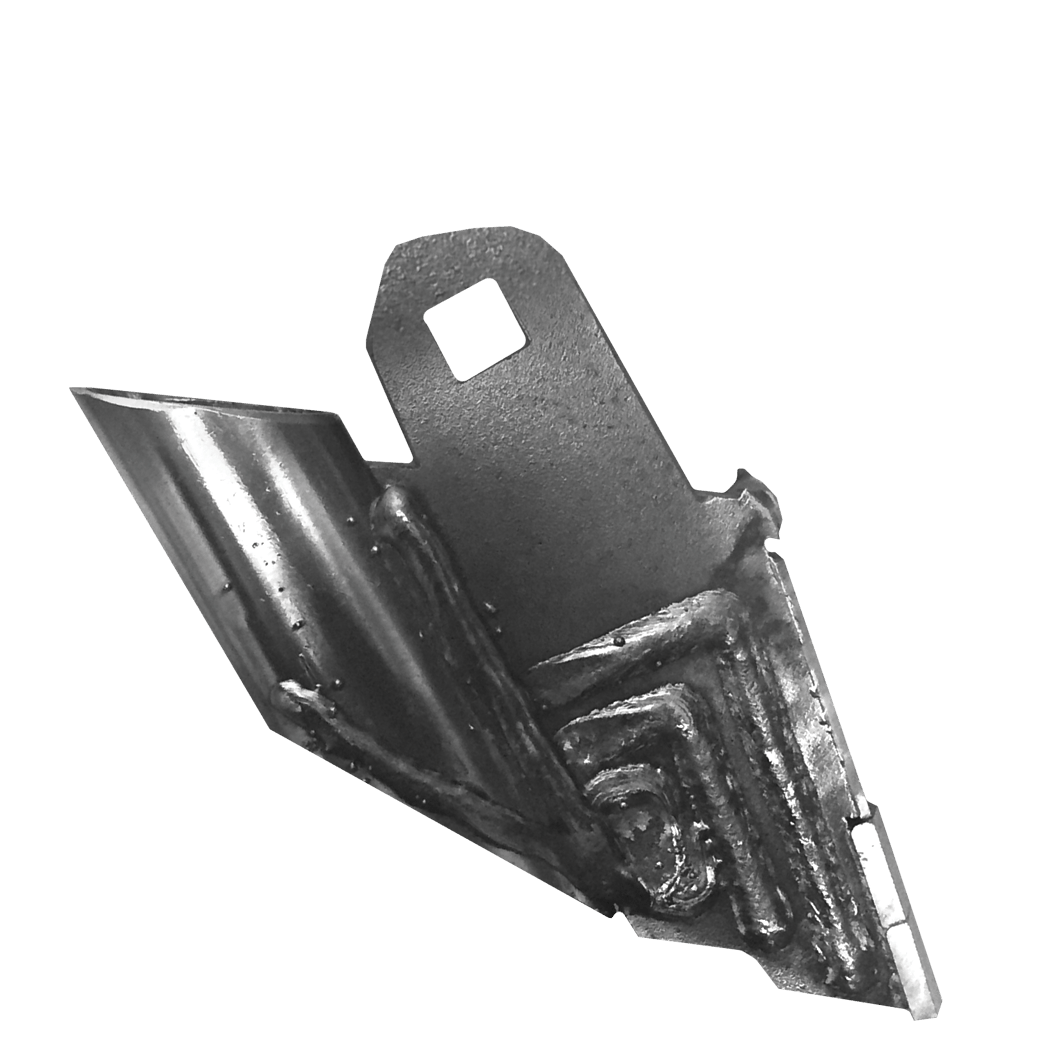

628-TIP-0510

Only fits the 628 holder. Carbide inserts are placed on the nose. Hard facing is placed on critical wear points for extended life of the tip.

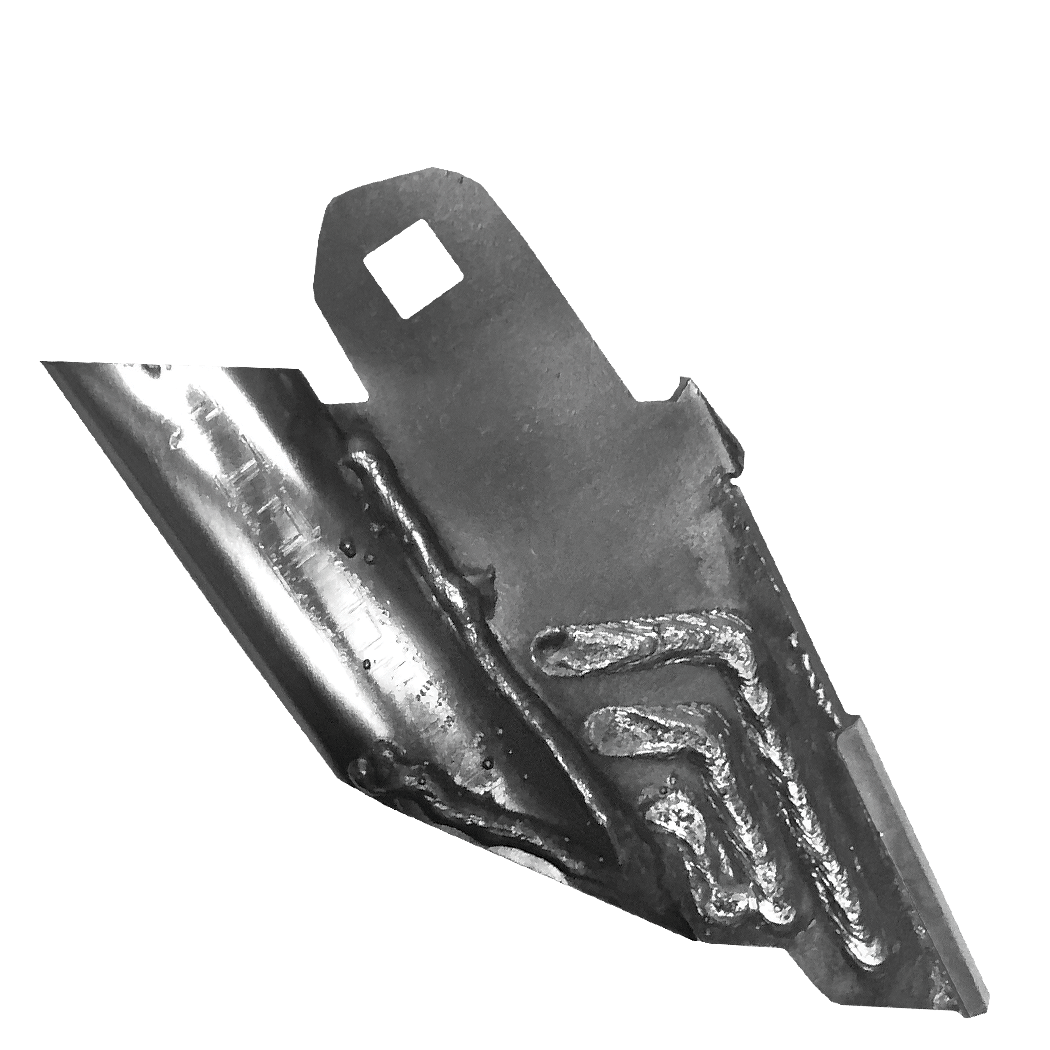

628-TIP-0512

Only fits the 628 holder. This tip has extra long nose carbide inserts and is 1″ longer than 628-TIP-0510.

620-TIP-4060

TRIPLE SHOOT UNIBODY TIP + SEED SHOE

Extra-long carbide inserts placed on the nose of the tip. The nose carbides have a continuous roofed profile, producing exceptional soil flow with minimal disturbance. The seed is placed in a distinct 4” paired row (2-3/4” center to center). The seed is deposited prior to the Aqua NH3 + Liquid Phos being placed 3/4” deeper, between the seed rows. The tip helps prevent skewing on hill sides. The shoe portion is 4” wide, with carbide fully covering the leading edges. NOTES: This tip replaces the standard tip, seed shoe, fertilizer tube combinations, and is to be used with 628, 688 & 694 holders.

4) CHOOSE YOUR FERTILIZER

Titan_Fertilizer_N
620-TUB-1021

1/2″ (12mm) O.D. NH3 tube for 620, 688 & 694 holders.

For pressurized NH3 order this tube and consult your pressurized system dealer for tubing inserts.

Titan_Fertilizer_N+P
620-TUB-1070 & 1070XL

1/4″ (6mm) O.D. Aqua NH3 + Phos tube for 620, 688 & 694 series holders.

620-TUB-1070XL is the same but longer, and required when using 620-TIP-0517.

Titan_Fertilizer_N+L
620-TUB-4000 & 4000XL

0.4″ O.D. Stainless Steel Liquid or NH3 tube for 620, 688 & 694 series holders.

620-TUB-4000XL is the same but longer, and required when using 620-TIP-0517.

Titan_Fertilizer_N+P
620-TUB-4040

0.4″ O.D. Stainless steel Aqua NH3 + Phos tube for 620, 688 & 694 series holders.

Titan_Fertilizer_N
628-TUB-1021

1/2″ (12mm) O.D. NH3 tube for 628 holders.

For pressurized NH3 order this tube and consult your pressurized system dealer for tubing inserts.

For a more detailed view of these components check out the expanded drawing.
