6X MORE WEAR THAN REGULAR TINES

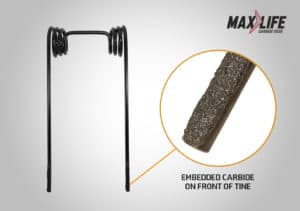

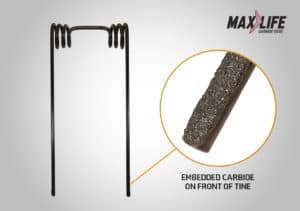

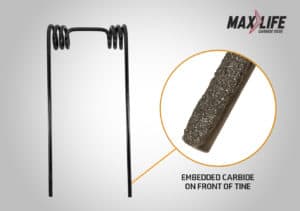

The MAX LIFE™ process infuses tungsten carbide onto the harrow tine creating the toughest and most economical option available. Field tests have proven that MAX LIFE tines outlast regular tines by a minimum of 6X.

BTT applies its MAX LIFE coating to tines manufactured by S3 Wireform, which are known for consistency and longer coil life. MAX LIFE™/S3 Harrow Tines – the perfect match for longevity and exceptional value.

Field Tested. Outstanding Results.

MAX LIFE harrow tines have proven to outperform a regular tine many times over. There is no more need to worry about excessive tine wear in dry soil conditions prior to the fall rain. People tend to put off harrowing when the soil is too dry but the sooner you can harrow straw and chaff behind the combine maximizes the benefits of straw management and even germination the next year. This new product will now change a harrowing/time management decision and there is a good chance the life of this tine will be close to the life of the harrow bar itself. I wouldn’t hesitate to recommend the MAX LIFE tine to anyone.”

Shawn Blandin, Synergy Farms, St. Brieux, SK

max-life-harrow-tine

10,000 acres of wear comparing a MAX LIFE harrow tine to a regular tine.

010-HAR-5000ML
010-HAR-5000ML
carbide harrow tine

010-HAR-3814ML

Fits: Summers/Herman (OEM #8H1110S)

Coil I.D.: 1-15/16″

Dimensions: 3/8″ (9.5 mm) diameter x 8-1/4″ (209.5 mm) wide x 14-1/2″ (368 mm) high

010-HAR-5000ML
010-HAR-5000ML
Harrow Tine

010-HAR-3817ML

Fits: Bourgault (OEM #2070-27)

Coil I.D.: 1-13/16″

Dimensions: 3/8″ (9.5 mm) diameter x 8″ (203 mm) wide x 17″ (432 mm) high

010-HAR-6250ML
010-HAR-6250ML
010-HAR-4309-drawing-1024x719

010-HAR-4309ML

Fits: John Deere (OEM #N236890)

Coil I.D.: 2-1/16″

Dimensions: 7/16″ (11 mm) diameter x 9″ (228 mm ) wide x 16″ (406 mm) high

010-HAR-5000ML
010-HAR-5000ML
010-HAR-4375-drawing-1024x719

010-HAR-4375ML

Fits: Bourgault/Delmar (OEM #2070-77, 2070-77-01)

Coil I.D.: 2-1/8″

Dimensions: 7/16″ (11 mm) diameter x 10″ (254 mm) wide x 20″ (508 mm) high

010-HAR-5000ML
010-HAR-5000ML
Harrow Tine

010-HAR-5000ML

Fits: Salford (OEM #R60000)

Coil I.D.: 2-9/16″

Dimensions: 1/2″ (12 mm) diameter x 10″ (254 mm) wide x 20″ (508 mm) high

010-HAR-5000ML
010-HAR-5000ML
010-HAR-5001-drawing-1024x719

010-HAR-5001ML

Fits: Bourgault XR770 (OEM #2070-79, 2070-79-01)

Coil I.D.: 2-11/16″

Dimensions: 1/2″ (12 m) diameter x 10″ (254 mm) wide x 22″ (558.8 mm) high

010-HAR-6250ML
010-HAR-6250ML
010-HAR-5008-drawing-1024x719

010-HAR-5008ML

Fits: Bourgault 9500CP (OEM #2070-76)

Coil I.D.: 2-5/8″

Dimensions: 1/2″ (12.7 mm) diameter x 8″ (203 mm) wide x 20″ (508 mm) high

010-HAR-6250ML
010-HAR-6250ML
Carbide Harrow Tine

010-HAR-5020ML

Fits: John Deere (OEM #N236516)

Coil I.D.: 2″

Dimensions: 1/2″ (12 mm) diameter x 12-1/4″ (311 mm) wide x 20″ (508 mm) high

010-HAR-5022-drawing-1024x719

010-HAR-5022ML

Fits: Elmer’s (OEM #21370, 12137000)

Coil I.D.: 2-3/4″

Dimensions: 1/2″ (12 mm) diameter x 10″ (254 mm) wide x 22″ (559 mm) high

Carbide Harrow Tine

010-HAR-5027ML

Fits: Morris (OEM #H27900)

Coil I.D.: 2-9/16″

Dimensions: 1/2″ (12.7 mm) diameter x 10″ (254 mm) wide x 27″ (685.8 mm) high

Carbide Harrow Tine

010-HAR-5028ML UNIVERSAL

Fits:
CNH/Flexi-Coil (OEM #87505461)
Summers/Herman (OEM #8H1180S)

Coil I.D.: 2-9/16″

Dimensions: 1/2″ (12 mm) diameter x 12-3/8″ (314 mm) wide x 22″ (558.8 mm) high

Harrow Tine

010-HAR-5625ML UNIVERSAL

Fits:
Bourgault/Delmar (OEM #2070-28)
Brandt (OEM #B021750)
Degelman (OEM #143112)
Flexi-Coil (OEM #90081C, 87445314)
Gates (OEM #120240, 120241)
Pillar (OEM #212-033, 212-145)
Rite Way (OEM #404-0010, 404-0028)
Summers/Herman (OEM #8H1190S)

Coil I.D.: 2-5/8″

Dimensions: 9/16″ (14 mm) diameter x 12″ (305 mm) wide x 26″ (660 mm) high

010-HAR-6250ML
010-HAR-6250ML
Carbide Harrow Tine

010-HAR-5627ML

Fits: Morris (OEM #H49499)

Coil I.D.: 2-5/8″

Dimensions: 9/16″ (14 mm) diameter x 10″ (254 mm) wide x 27″ (686 mm) high

010-HAR-6250ML
010-HAR-6250ML
Harrow Tine

010-HAR-6250ML UNIVERSAL

Fits:
Bourgault (OEM #2070-70, 8606-13)
Brandt (OEM #B021751, C516584)
Degelman (OEM #143113)
Gates (OEM #120229, 120230)
Summers/Herman (OEM #8H1195S)

Coil I.D.: 2-5/8″

Dimensions: 5/8″ (15 mm) diameter x 12-1/2″ (318 mm) wide x 27″ (686 mm) high
