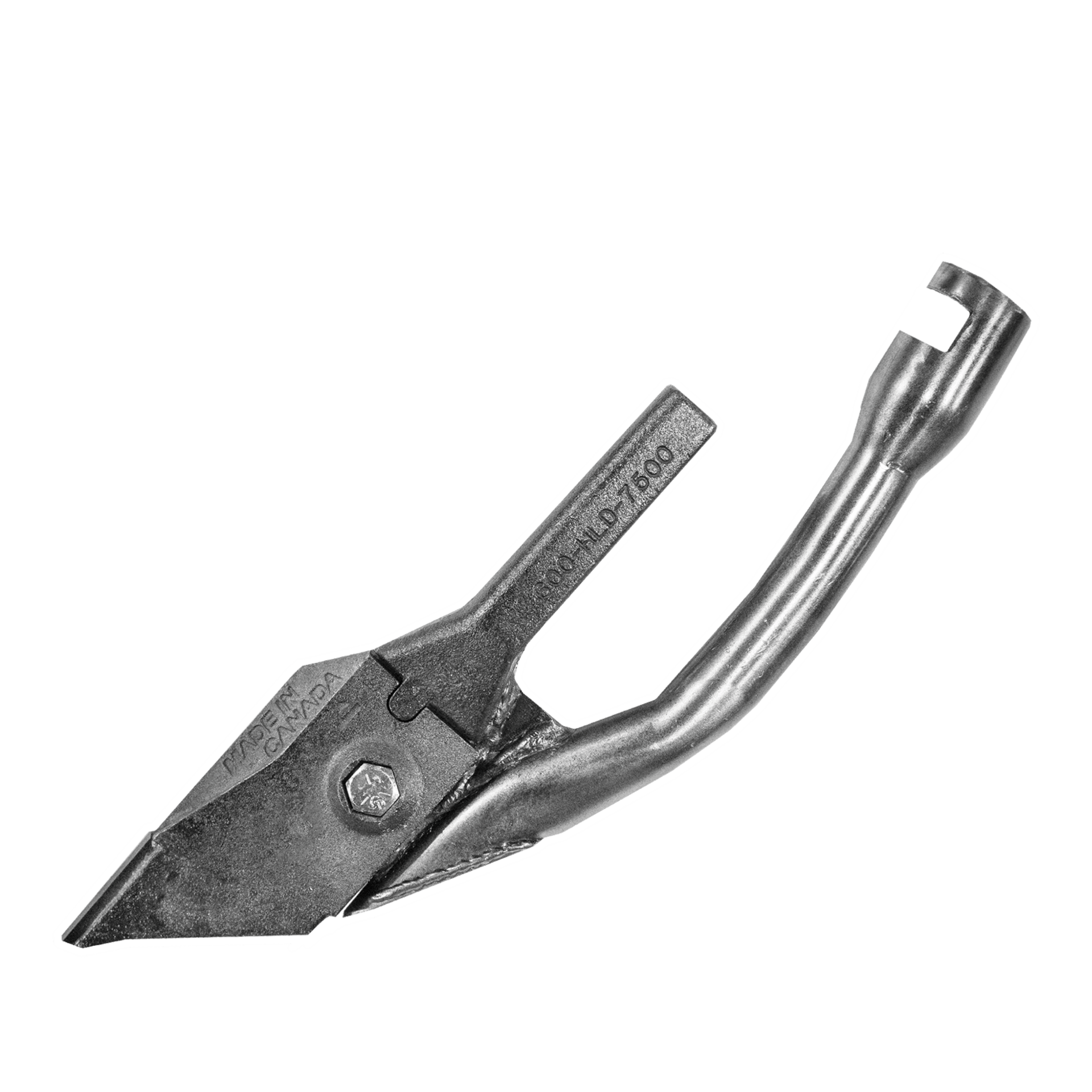

600-KNH-7540 / 600-KNH-7640 fits C-Shank

SINGLE SHOOT SEED OPENER / FERTILIZER APPLICATOR KNIFE

Fits: 43° and 50° C-Shank

Fertilizer Type: Starter fertilizer with seed only.

Tube Size:
600-KNH-7540: 1-1/4” (32mm) O.D.
600-KNH-7640: 1-1/2” (38mm) O.D.

Bolt Hole Spacing: 1-3/4” to 2-1/2” (44 – 64mm) slotted bolt hole spacing providing the ability to fit many different makes and models.

Tip Options:
3/4” (19mm) tips:

• 600-TIP-7500 (cast chrome)
• 600-TIP-7501 (regular carbide)
• 600-TIP-7502 (extra-long nose carbide)

• 600-TIP-3011 (full carbide)

Tips sold separately.

Overview: The larger tip on these holders provides extra-long wear while reducing wear on the holder.

Notes: Installation bolts sold separately. Use 1/2” Grade 8 Hex Head bolts.
